Bataryalar, yeni enerji araçlarında (NEV'ler) menzil, performans ve uzun ömürlülüğü doğrudan etkileyen kilit bileşenlerdir. Bu faktörler NEV sahipleri ve üreticileri için belirleyici olmakla birlikte güvenlik, verimlilik ve maliyet de başarı için büyük önem taşımaktadır.
Güvenilir ve uzun ömürlü bataryalar, birinci sınıf malzemeler ve hassas üretim teknikleri kullanımını gerektirir. Hücreler, modüller ve tepsiler de nihai montaj sırasında çok sıkı toleranslara uymalıdır.
Endüstriyel mikroskopi, bilgisayarlı tomografi (BT), koordinat ölçüm makineleri (CMM'ler) ve optik 3D ölçüm sistemleri içeren ZEISS portföyü, elektrikli araçlar için batarya güvenliğini ve performansını sağlamak için gerekli kaliteli verileri yakalamak üzere yazılım çözümlerini kullanmaktadır.
Batarya uygulamalarının tam kapsamı

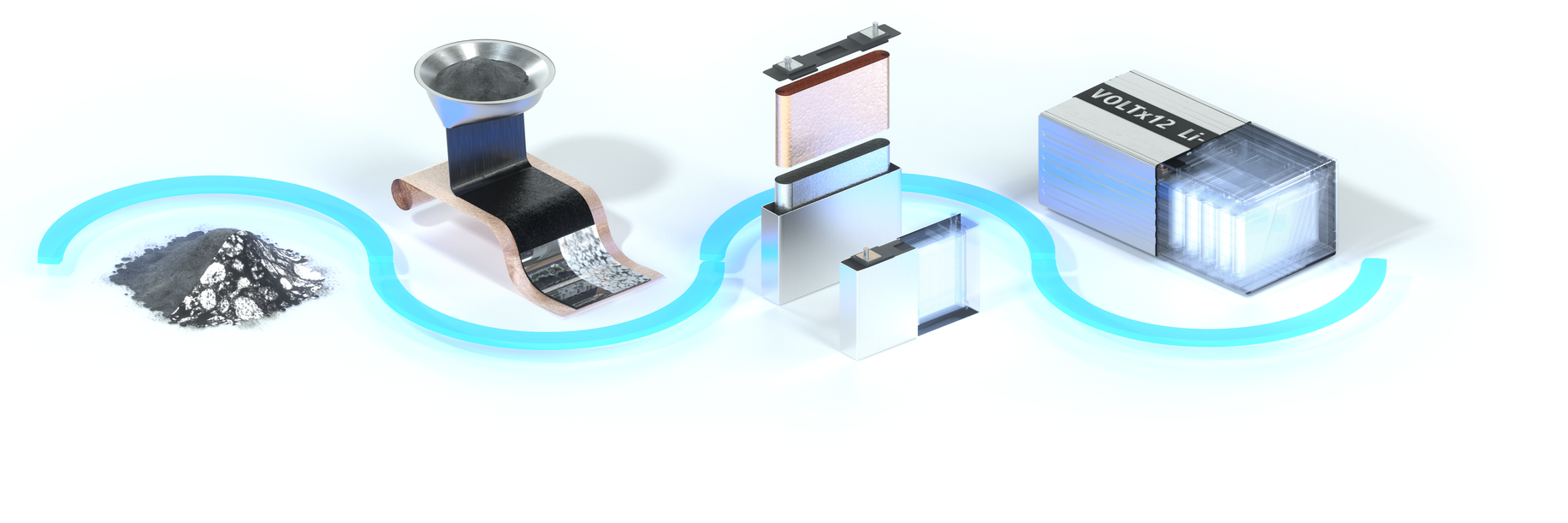

NEV sektöründe, bataryalar çok çeşitli kalite yönetimi uygulamalarının merkezinde yer almaktadır. Bunlar, ilk geliştirmeden nihai montaja kadar tüm batarya üretim iş akışını kapsamaktadır. Batarya malzemelerinin analizi, batarya elektrotlarının muayenesi, üretilen hücreler ve modüller üzerinde son kontrollerin yapılması, akü tepsisinin kontrolü gibi tüm işlemleri ZEISS portföyündeki çözümlerle gerçekleştirebilirsiniz. NEV akü uygulamalarına yönelik özel kalite yönetimi çözümlerimizi keşfetmek için aşağıdaki bağlantılara tıklayın.

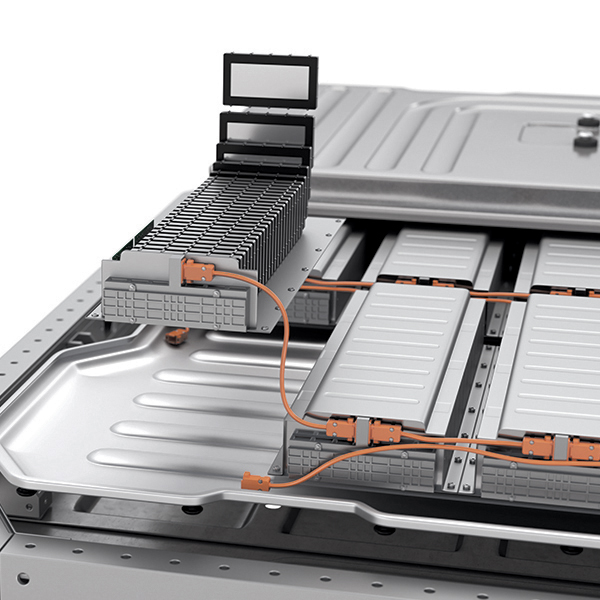

Batarya malzemeleri
Malzeme ve yapı geliştirme

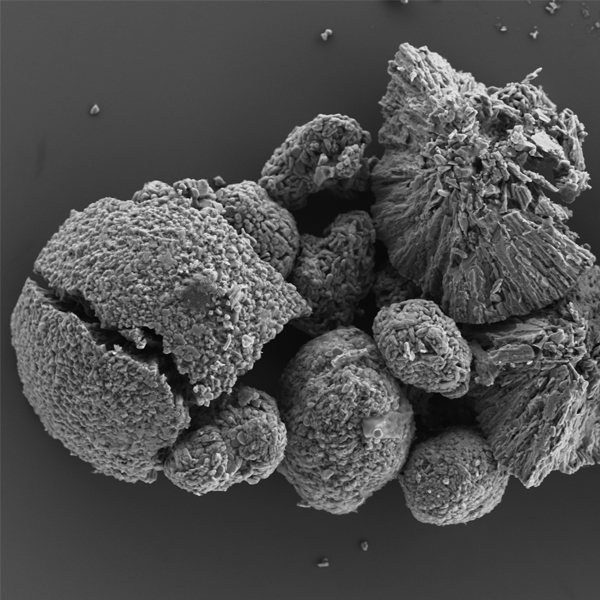

Hammaddelerin batarya performansı üzerinde önemli bir etkisi vardır. Bu konudaki temel zorluklar arasında yeni aktif malzemeler geliştirmek, tek tip ve tutarlı bir tedarik sağlamak, uygun kalenderleme basıncını korumak ve yaşlanmanın neden olduğu mikroskobik değişiklikleri gözlemlemek yer almaktadır.

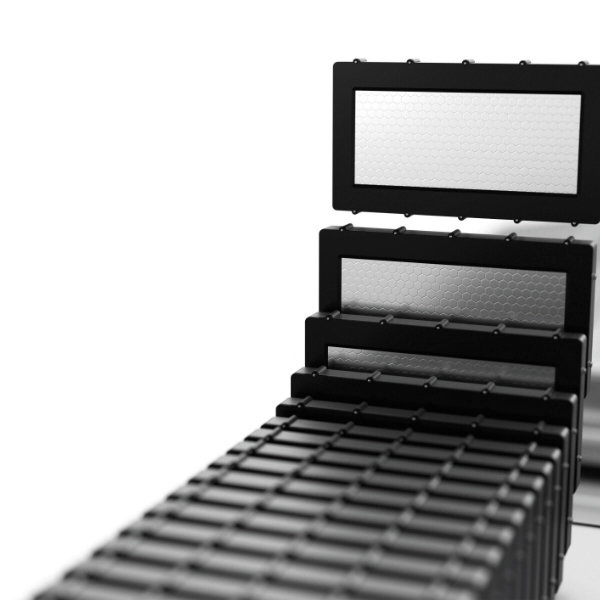

Batarya elektrotları güvenlik ve verimlilikte önemli bir rol oynar; mikroyapı malzeme analizi, kesici bıçağın muayenesi ve zamanında değiştirilmesi ve deformasyonların 3D görselleştirilmesi bu açıdan kilit öneme sahiptir. Teknik temizlik yoluyla partikül kontaminasyonunun süreç boyunca önlenmesi de önem arz etmektedir.

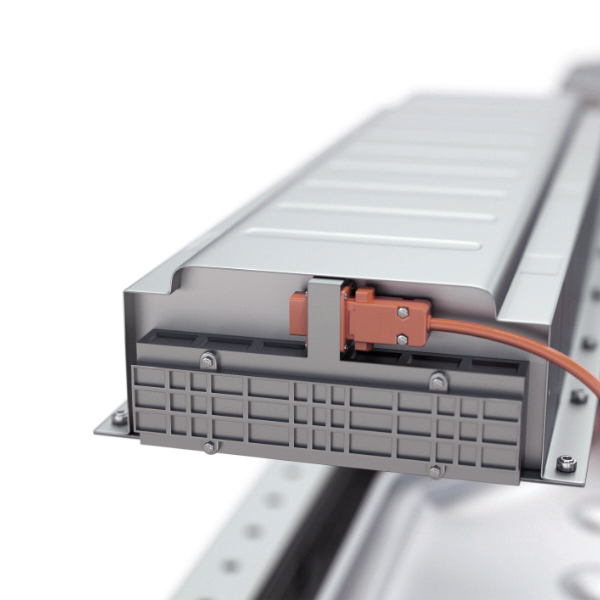

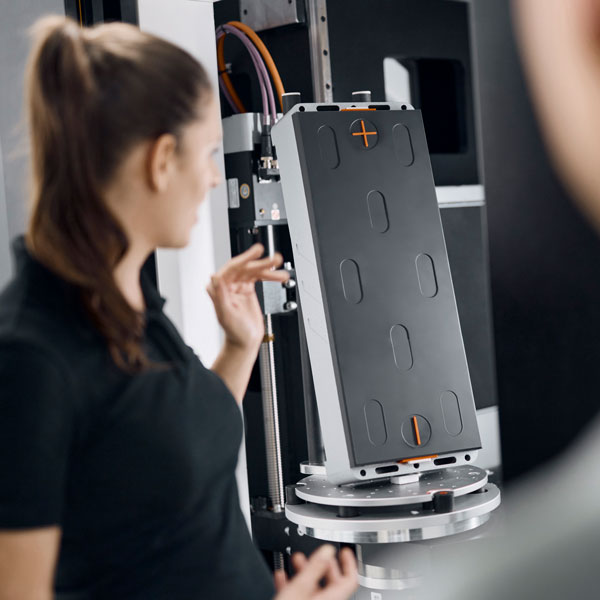

Komple batarya modülünün nihai muayenesi özellikle zorlu bir süreçtir, zira bu tür modüllerdeki münferit hücreler bir dizi güvenlik riski ve kalite sorunu teşkil edebilir. Silindirik, prizmatik ve kesecik şeklindeki her üç hücre tipi için de yüksek çözünürlüklü, hızlı test döngüleri gereklidir.

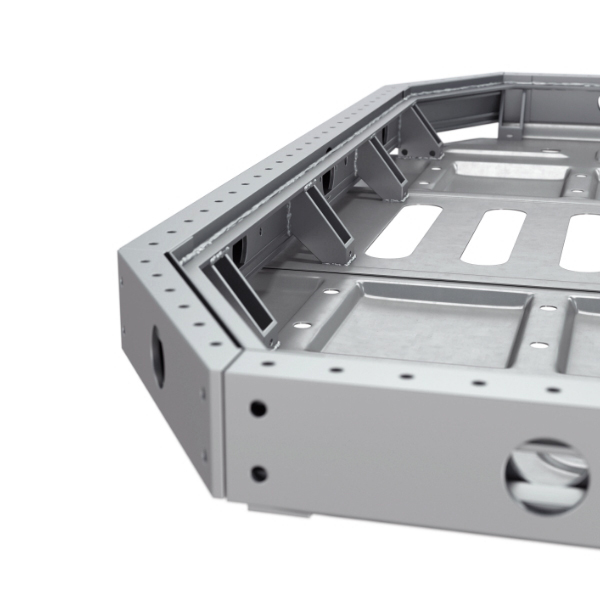

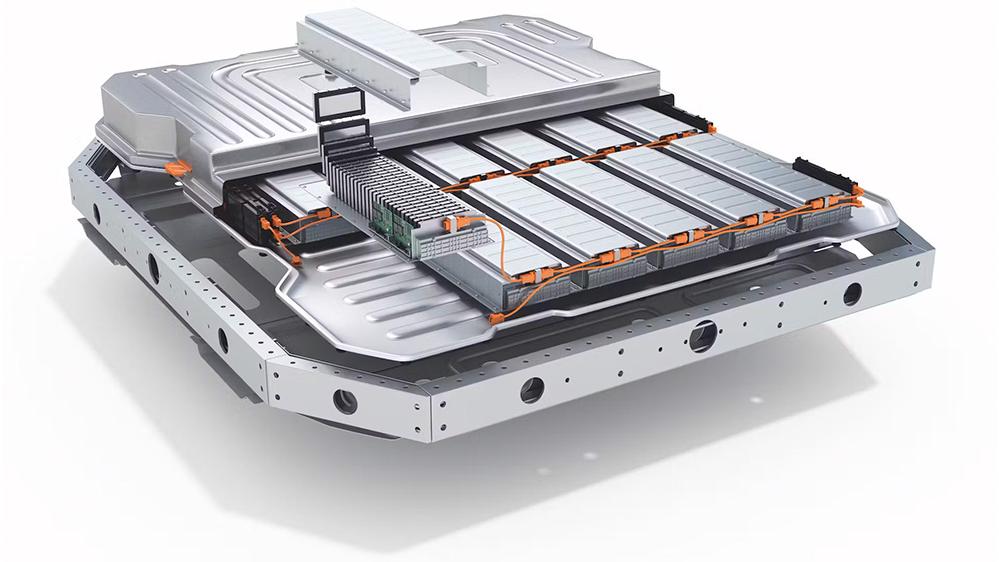

Batarya tepsisinde tüm akü hücreleri, konnektörler, kontrol üniteleri ve çok sayıda batarya modülü içeren batarya paketleri bulunur. Araç karoserine tamamen entegre olduğundan, kalite ve güvenliği sağlamak için yapısı ve bütünlüğü üretim sırasında birçok noktada denetlenmelidir.
Hücre yapısının kalitesini güvence altına almak ve yüksek performansı mümkün kılmak için güvenli ve verimli numune hazırlama süreçlerine ve analitik çözümlere ihtiyaç duyulur
Hücre yapısının orijinal durumu hücreyi parçalarına ayırmadan analiz edilmelidir
ZEISS ile avantajlarınız
Güvenli numune hazırlama ve verimli geniş alanlı kesit alma

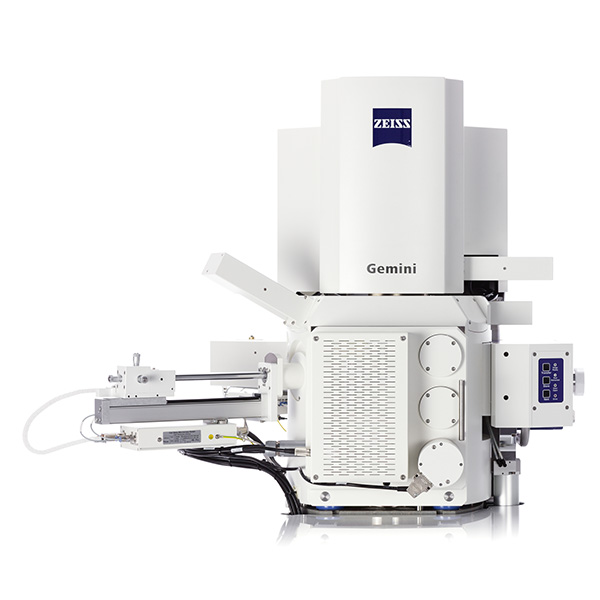

ZEISS GeminiSEM ile düşük kV aralığında elektron ışınına duyarlı batarya malzemelerinin yüksek çözünürlüklü, yüksek kontrastlı analizi

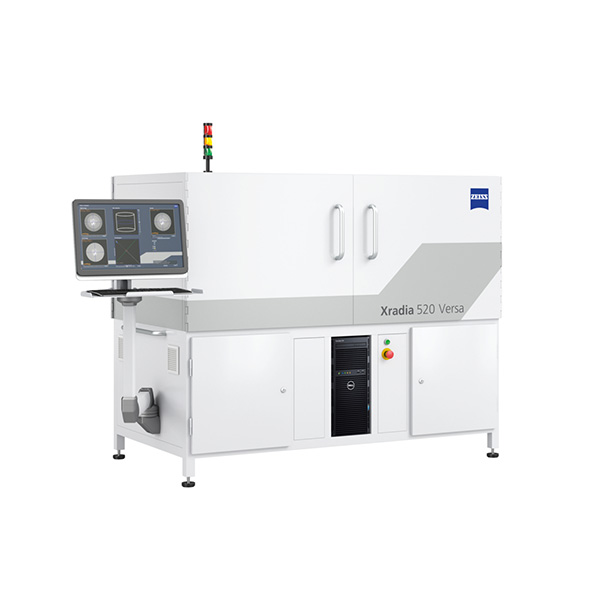

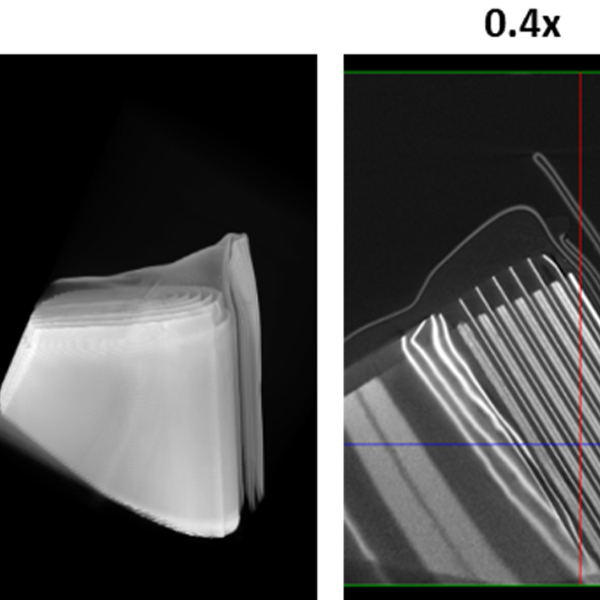

ZEISS Xradia X-ray mikroskobu (XRM) ile yüksek çözünürlüklü, tahribatsız 3D hücre yapısı analizi
Gelen mal kontrolü, malzemenin tekdüzeliğini ve tutarlılığını sağlayarak performansı ve verimliliği büyük ölçüde etkileyebilecek kusurları önler

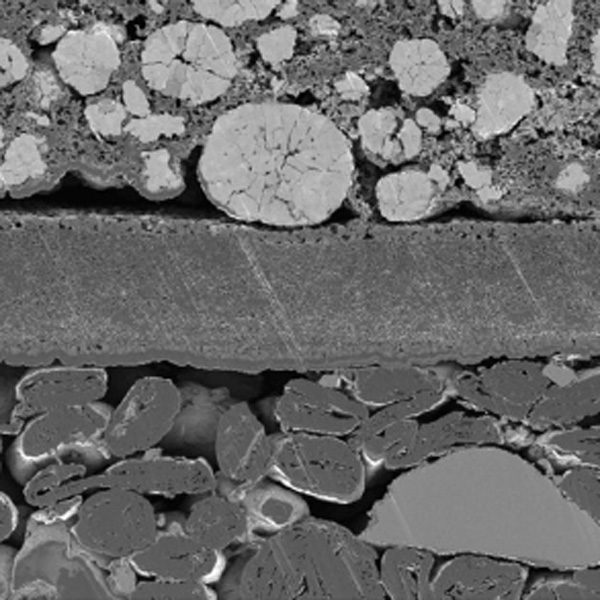

Hammadde mikroyapısının görselleştirilmesi ve kontrolü, katot partikül kimyasal element oranı ve anot partikül saflığı, batarya arızalarının önlenmesi açısından çok önemlidir
ZEISS ile avantajlarınız
ZEISS GeminiSEM ile nanometre altı görüntüleme, analiz ve numune esnekliğinde en zorlu talepleri karşılayın
Eksiksiz numune hazırlama iş akışı, malzeme mikro yapısının hızlı, net ve sorunsuz bir şekilde görüntülenmesini sağlar
İletken olmayan numunelerin yüksek çözünürlüklü, yüksek kontrastlı olarak görüntülenmesini destekler

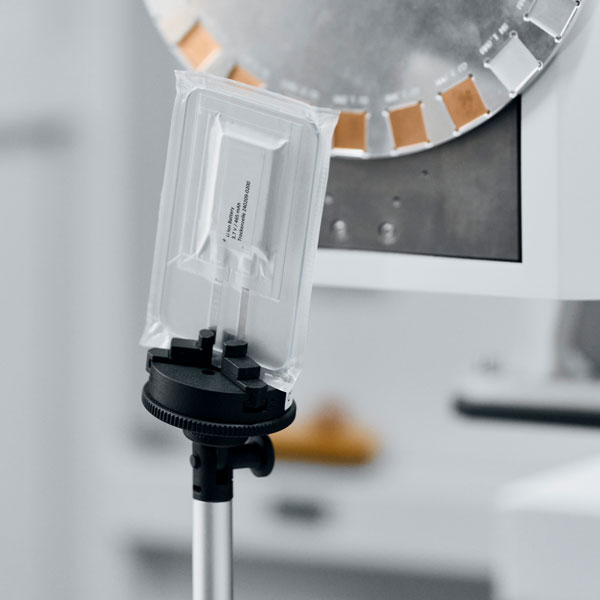

Hücre elektrotlarının hizalamasının ve konumunun kontrol edilmesi ve dahili kusurların tespit edilmesi, güvenlik tehlikelerini ve israfı önlemede büyük önem taşır
Yüksek hücre üretim hızlarının üstesinden gelebilmek için hızlı, yüksek çözünürlüklü denetim döngüleri gereklidir
ZEISS ile avantajlarınız
Çıkıntı yapan, hasarlı elektrotlar ve kaynak kalitesini işlemek için ZEISS 2D ve 3D X-ray çözümleri ile yüksek çözünürlüklü görüntüleme
ZEISS METROTOM gibi sistemler aracılığıyla karmaşık parçaların en ince ayrıntısına kadar hızlı ve verimli bir şekilde tam 3D dijitalleştirilmesi
ZEISS BOSELLO hata tespiti ile %100 hat içi otomatik değerlendirme
Bataryalar için kalite güvencesine ilişkin ek içgörüler
Üçüncü Taraf İçerikleri Engellendi
Çerez tercihlerinizden dolayı video oynatıcı engellendi. Ayarları değiştirmek ve videoyu oynatmak için lütfen aşağıdaki tuşa tıklayın ve "Fonksiyonel" izleme teknolojilerinin kullanımına izin verin.
Elektrikli mobiliteye geçişi destekleyen yenilikler
Bataryalar için ZEISS eMobility Solutions
Üçüncü Taraf İçerikleri Engellendi
Çerez tercihlerinizden dolayı video oynatıcı engellendi. Ayarları değiştirmek ve videoyu oynatmak için lütfen aşağıdaki tuşa tıklayın ve "Fonksiyonel" izleme teknolojilerinin kullanımına izin verin.
Tahribatsız bilgisayarlı tomografi (BT) ile çarpıcı ayrıntılar

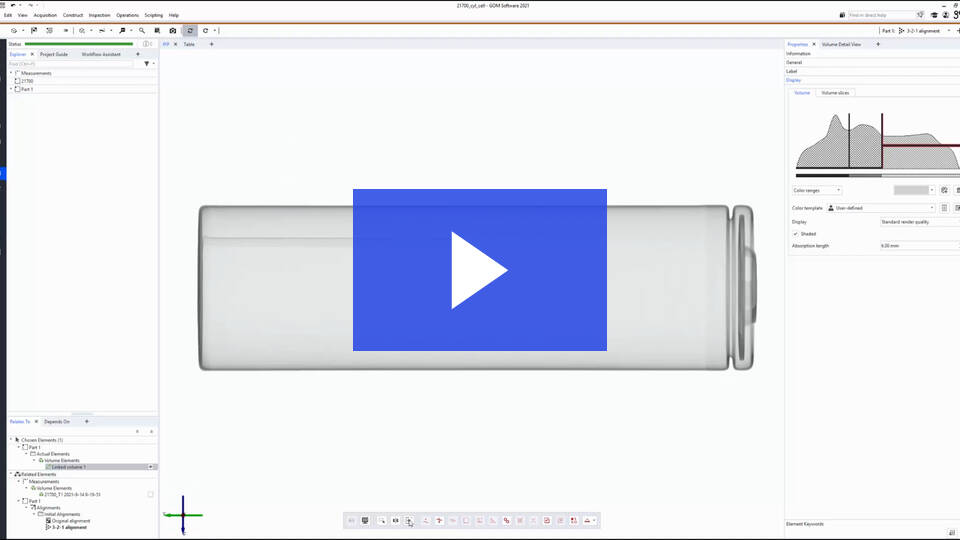

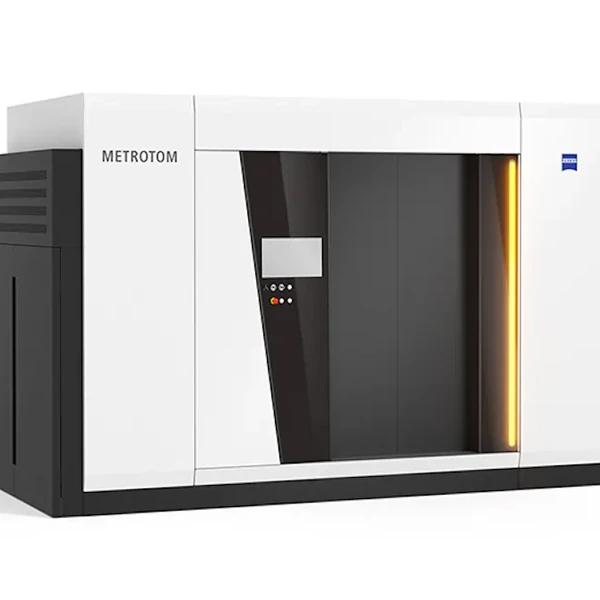

ZEISS METROTOM 1500 ile Silindirik Batarya Taraması
Bataryalar elektrikli araçların merkezinde yer alan kritik bileşenlerdir. Kalite güvencesi üreticiler için birinci önceliğe sahiptir. Bu salt bir zorunluluktur.
