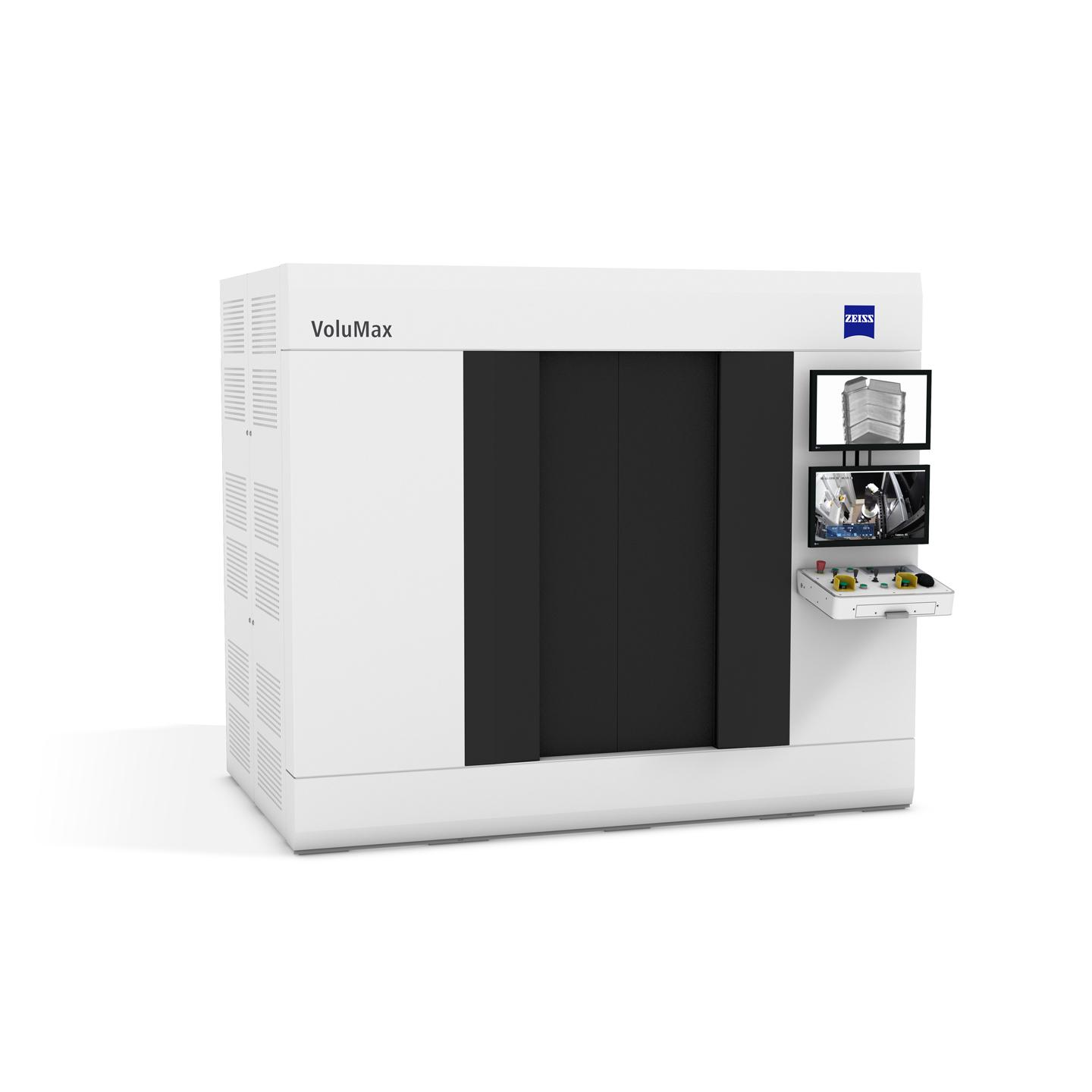

ZEISS VoluMax 9 titan
Verimli iş akışları için güçlü tek noktadan çözüm
ZEISS VoluMax 9 titan, güçlü teknolojiyi maksimum kullanım kolaylığı ile bir araya getirmektedir. BT sistemi, 450 kV tüp voltajı ve 1.500 W güç ile donatılmış olup, dikkate değer bir penetrasyon gücü sunar ve hem yüksek yoğunluklu parçalardaki hem de karmaşık çok malzemeli tertibatlardaki kusurları güvenilir bir şekilde tespit eder.
Tam entegre ZEISS INSPECT X-Ray yazılımı, kullanıcıların tarama kalibrasyonundan rapor oluşturmaya kadar çeşitli görevleri tek bir yazılımda gerçekleştirmelerini sağlar.
Kullanıcı dostu BT sistemi
ZEISS VoluMax 9 titan, 450 kV performansı olağanüstü kullanım kolaylığı ile bir araya getirmekle kalmayıp aynı zamanda piyasadaki türünün en kompakt ve sağlam sistemidir. Geniş iç mekanı 590 x 700 mm'ye ve 60 kg'a kadar olan parçaları alabilirken, 3k dedektörü ve 1.500 W gücü olağanüstü penetrasyon gücü sunar. Tüm bu özellikler büyük ve yoğun bileşenlerin işlenmesinde kritik öneme sahiptir.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/compact-smart-design.svg/_jcr_content/renditions/original./compact-smart-design.svg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/robust.svg/_jcr_content/renditions/original./robust.svg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/smart-service.svg/_jcr_content/renditions/original./smart-service.svg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/fast-roi.svg/_jcr_content/renditions/original./fast-roi.svg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/easy-loading.svg/_jcr_content/renditions/original./easy-loading.svg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/user-safety.svg/_jcr_content/renditions/original./user-safety.svg"})
Zorlu sektörlerde hassas prosesler
Tipik uygulamalara genel bakış
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.100.56.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.360.203.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.768.432.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.855.481.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.855.481.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.855.481.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-battery-_px.jpg/_jcr_content/renditions/original.image_file.855.481.213,0,1068,482.file/zeiss-vm9-application-battery-_px.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.100.56.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.360.203.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.768.432.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.855.481.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.855.481.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.855.481.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-stator-_px.jpg/_jcr_content/renditions/original.image_file.855.481.219,0,1074,482.file/zeiss-vm9-application-stator-_px.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.100.56.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.360.203.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.768.432.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.855.481.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.855.481.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.855.481.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-blade-_px.jpg/_jcr_content/renditions/original.image_file.855.481.207,0,1062,482.file/zeiss-vm9-application-blade-_px.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.100.56.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.360.203.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.768.432.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.855.481.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.855.481.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.855.481.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss-vm9-application-motor-_px.jpg/_jcr_content/renditions/original.image_file.855.481.164,0,1019,482.file/zeiss-vm9-application-motor-_px.jpg"})
Kompakt ve sağlam ZEISS VoluMax 9 titan sistemi, kullanıcı dostu kullanımının yanı sıra üst düzey performans sağlamak için ek özelliklerle donatılmıştır. Öne çıkan özellikler ile ilgili daha fazla bilgi için aşağıdaki görselde yer alan mavi noktalara tıklayın.
Öne çıkan özellikler
En yüksek hat ve kalite laboratuvarı performansı
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.100.56.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.360.203.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.768.432.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.1024.576.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.1280.720.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.1440.810.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/inspection-line/volumax-9-titan/zeiss_volumax-9-titan-offene-tueren.jpg/_jcr_content/renditions/original.image_file.1533.862.60,357,1593,1220.file/zeiss_volumax-9-titan-offene-tueren.jpg"})
Teknik veriler
|
|
|
|---|---|
|
Boyutlar (G x Y x D) |
2.750 mm x 2.350 mm x 1.750 mm |
|
Sistem ağırlığı |
13,500 kg |
|
Tüp voltajı |
450 kV, 3,3 mA |
|
Piksel aralığı |
139 μm |
|
Düz panel dedektörü |
3,072 x 3,072 px |
|
Maks. iş parçası boyutu |
Ø 590 x 700 mm |
|
Maks. parça ağırlığı |
60 kg |
Uygulama alanları:
Batarya modülleri, statorlar, kanatlar, elektrik tertibatları
Muayene özellikleri:
Yoğun malzemelerin tahribatsız muayenesi ve kalite güvencesi
Yoğun malzemelerin taranması konusunda katma değerli bir çözüm mü arıyorsunuz?

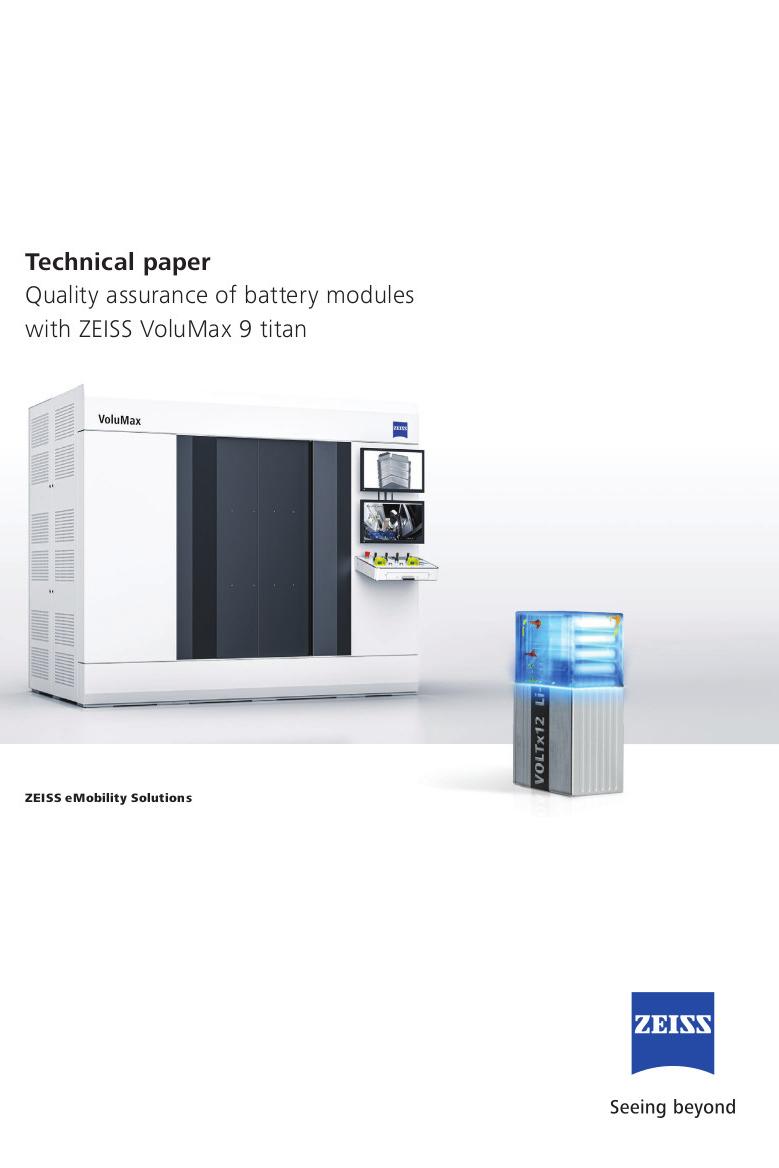

Teknik dokümanımızı indirmek için aşağıdaki formu doldurun.
