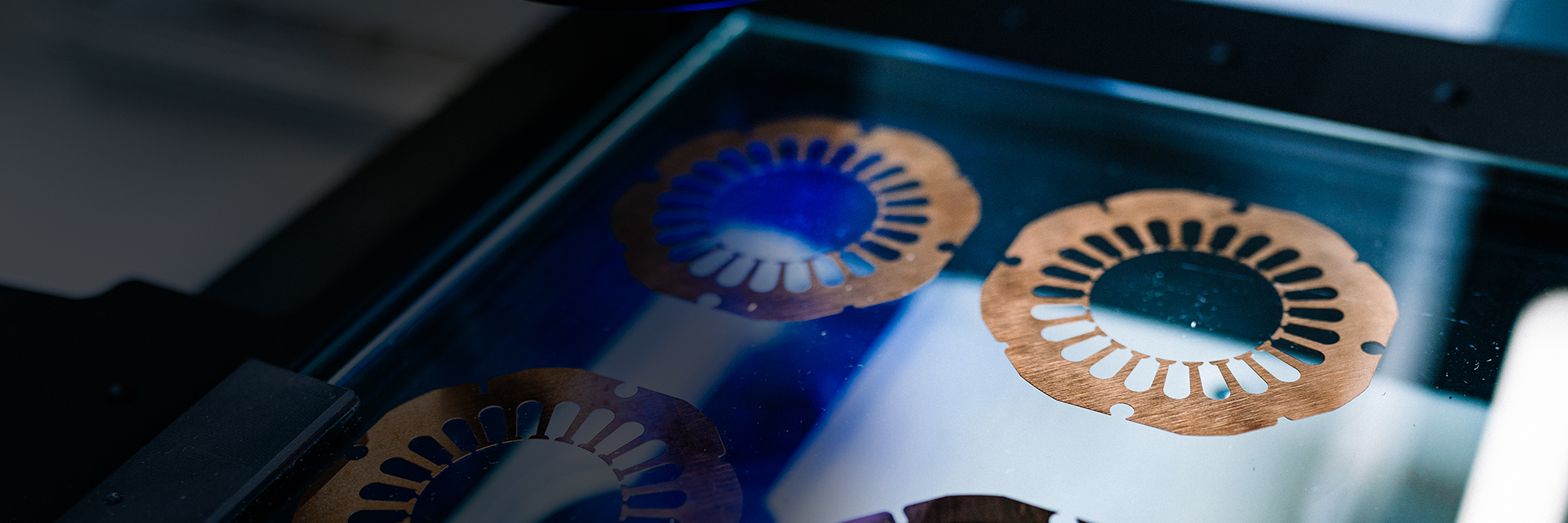

Sac Levha Yığınları için Kalite Güvencesi
Sac levha muayenesi ve yığın konumlandırma
Sac levha bazında yığın kalitesinin sağlanması
Dar toleranslar ve pürüzsüz yüzeyler
Tek 2D saclar, rotor ve statorlarda kullanılan sac levha yığınlarının oluşturulması için gerekli temeli sağlar. Sac levha yığınları, her biri elektrikli çelik sac levhalardan delinmiş veya lazerle kesilmiş ve kalınlığı 1 mm'den az olan çok sayıda sac levhadan oluşur. Temel kalite unsurları arasında hairpinler için enine kesit yuva geometrisi, kalıcı mıknatıs yuvaları ve sac yığını grubunun iç ve dış çapı yer alır. Toleranslar mikrometre aralığında olduğundan, uygun e-motor performansını sağlamak için sac levhaların düz ve çapaksız olması gerekir.
Sac yığınları için temel kalite zorlukları

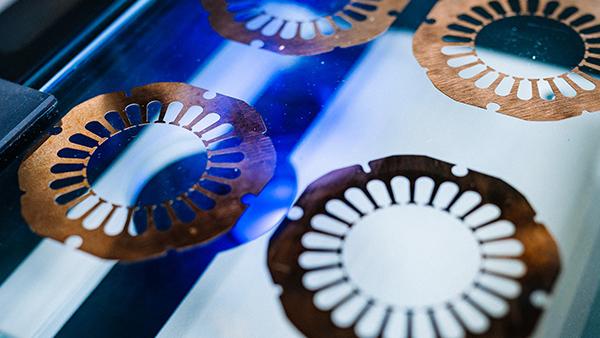

![Tek sac levha muayenesi]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/03-single-sheet-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/03-single-sheet-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/03-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/03-single-sheet-600px.jpg"} "Tek sac levha muayenesi")
Tek sac levha muayenesi
Tek sac levha üretimi
2D sac levhanın geometrisi nihai stator ve sabit mıknatıs yuvalarının boyutlarını tanımladığından, bu boyutların hızlı ve yüksek doğrulukla ölçülmesi çok önemlidir. Sac levha kalınlığı ve bu kalınlığa bağlı esneklik, ölçüm zorluklarına yol açmaktadır.

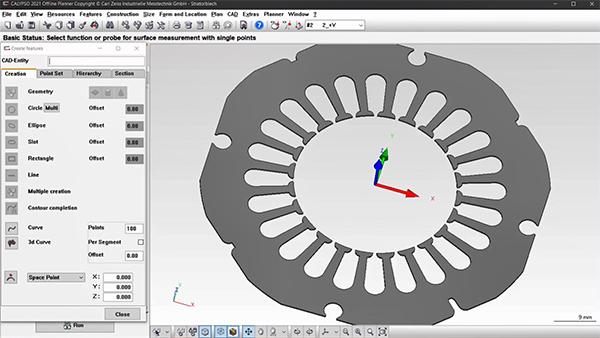

![Geometrik muayene]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/05-calypso-single-sheet-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-calypso-single-sheet-600px.jpg"} "Geometrik muayene")
Geometrik muayene
Tek sac levha üretimi
Her bir sac levhanın yassılığını ölçmek için 2D kameralar ve konfokal ışık sensörleri gibi çözümler içeren ZEISS multisensör teknolojisi kullanılır. Yassılık ve çapaksızlık, mükemmel şekilde yapılandırılmış ve montajı kolay bir sac levha yığını elde edilmesinde dikkat edilmesi gereken temel faktörlerdir.

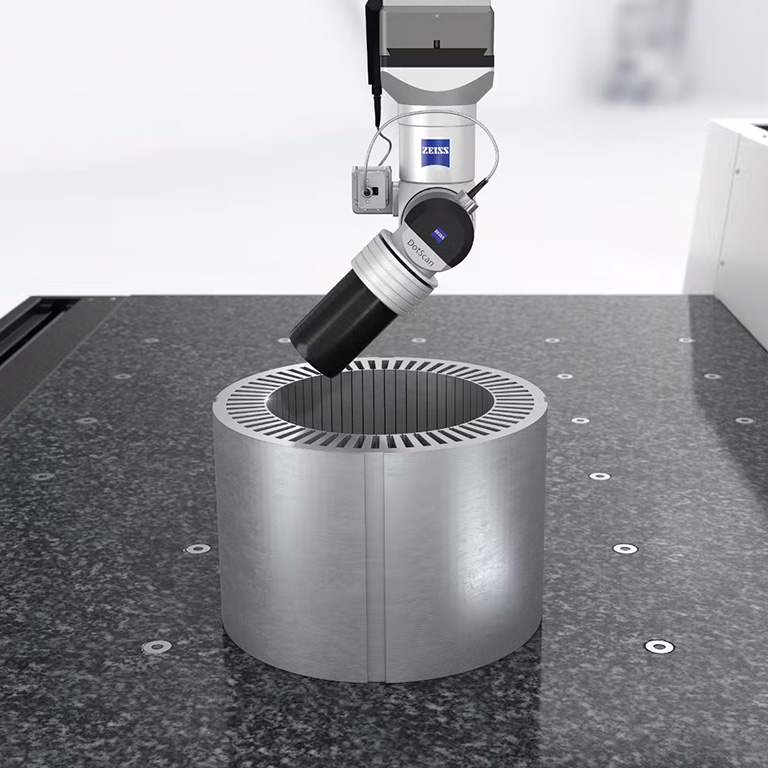

![Montaj çözümleri]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original.image_file.100.100.file/08-strator-stack-768.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original.image_file.360.360.file/08-strator-stack-768.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/sheet-stacks/08-strator-stack-768.jpg/_jcr_content/renditions/original./08-strator-stack-768.jpg"} "Montaj çözümleri")
Uygulamanız için mükemmel ürünü bulun
ZEISS portföyünü keşfedin

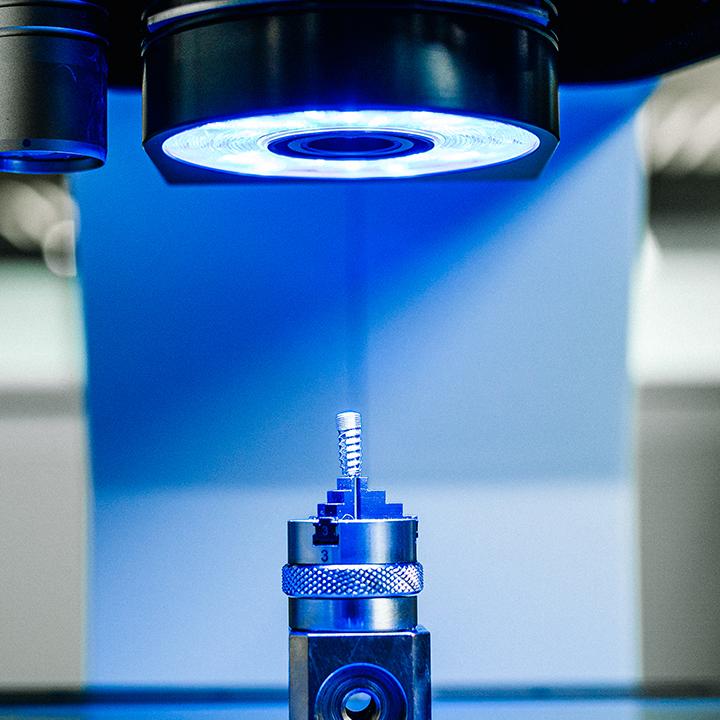

![Optik koordinat ölçüm makineleri]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.100.100.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.360.360.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.720.720.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.720.720.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.720.720.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.720.720.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/optical-measurement/zeiss-visions-cmm-header-desktop.jpg/_jcr_content/renditions/original.image_file.720.720.482,0,1202,720.file/zeiss-visions-cmm-header-desktop.jpg"} "Optik koordinat ölçüm makineleri")
