ZEISS DotScan
Serbest formlu yüzeylerin ölçümü için optik sensör
Kromatik beyaz ışık sensörleri, iş parçası yüzeyinin temassız olarak yakalanmasını sağlar. Bunlar genellikle hassas, yansıtıcı veya düşük kontrastlı yüzeylerin diğer optik sensörlerin kullanımını zorlaştırdığı durumlarda kullanılır.
Özellikler
![ZEISS DotScan: Serbest formlu yüzeylerin ölçümü için optik sensör]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Serbest formlu yüzeylerin ölçümü için optik sensör")

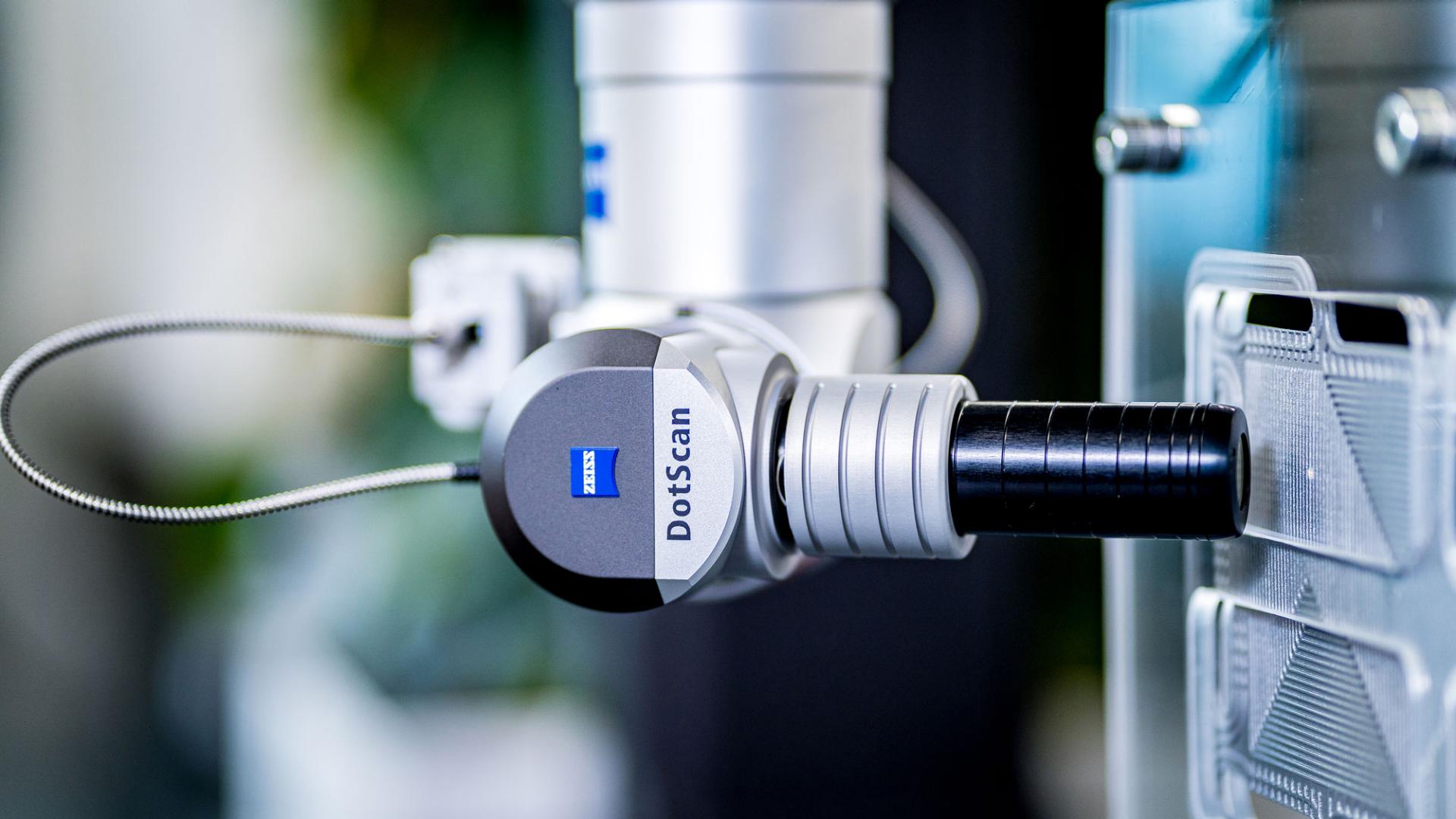

ZEISS DotScan, serbest formlu yüzeylerin ve hatta küçük yapıların yakalanması için olağanüstü bir seçenek sunar. Kromatik beyaz ışık sensörleri - ve dolayısıyla ZEISS DotScan - özellikle hassas, yumuşak, yansıtıcı veya düşük kontrastlı yüzeylerde stylus veya kamera sensörleri sınırlarına ulaştığında tercih edilen yöntemdir.
ZEISS DotScan kullanılarak, diz implantlarındaki metal bileşenler gibi güçlü yansıtıcı yüzeyler, kontrast madde enjekte edilmesine gerek kalmadan taranabilir. Bu ayrıca, şeffaf lake yüzeylerin alttaki metalik tabakalardan ayrışmasını sağlar.
![ZEISS DotScan: Serbest formlu yüzeylerin ölçümü için optik sensör]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Serbest formlu yüzeylerin ölçümü için optik sensör")
Esnek kullanım

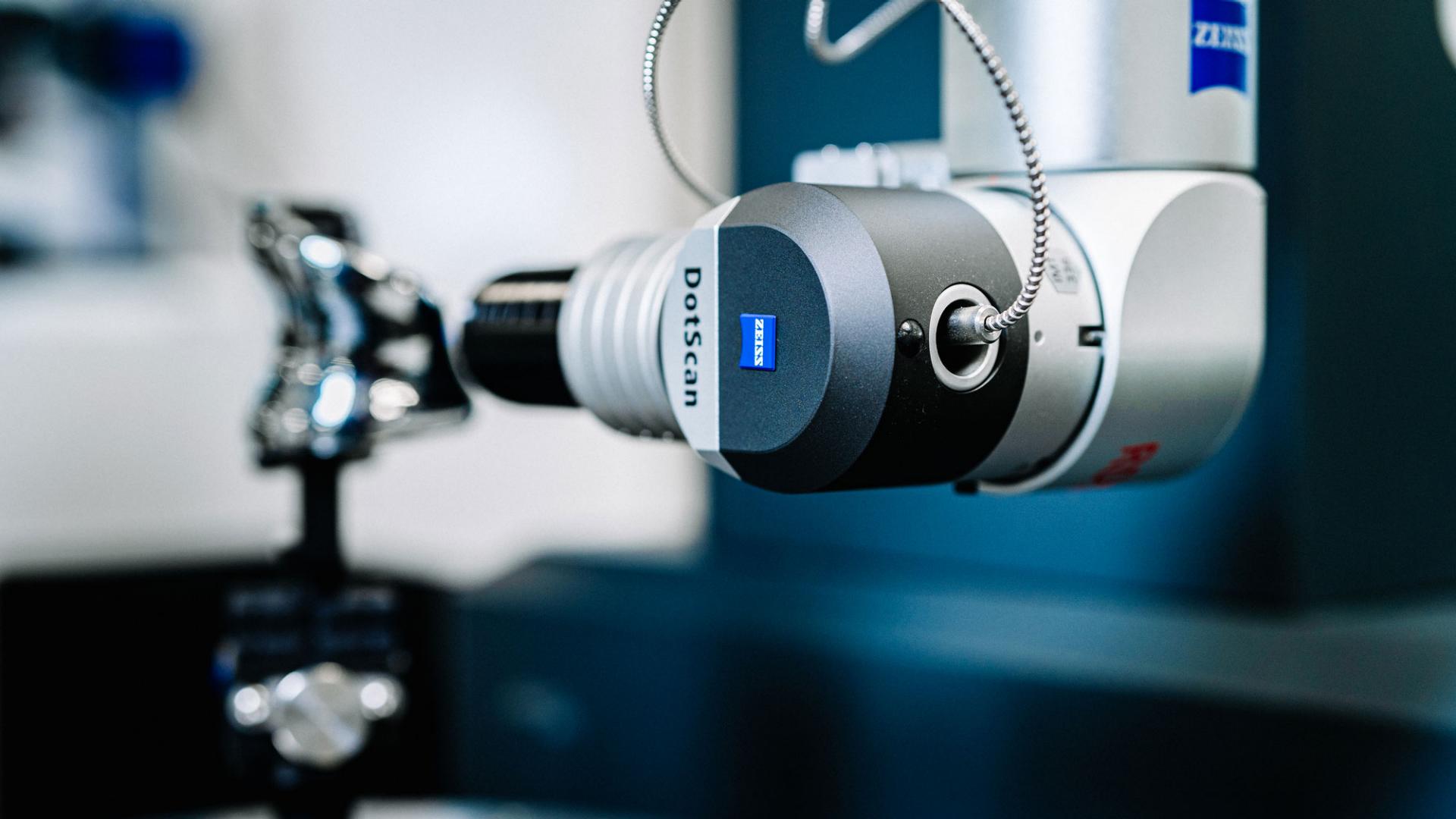

ZEISS DotScan, üç farklı ölçüm aralığı için üç farklı boyutta mevcuttur: 10, 3 ve 1 mm. Sensör, tek bir CNC çalışması içinde diğer temaslı veya optik sensörlerle tam otomatik olarak değiştirilebilir. Döner kafa, 2,5 derecelik artışlarla ZEISS DotScan'i taranan bileşenin yüzeyine dik olacak şekilde hizalayabilir.
ZEISS DotScan 1 mm'nin maksimum ölçüm açısı artı/eksi 30 derece olduğundan, daha güçlü kavisli bileşenler bile taranabilir. Sensörün çalışma modu sayesinde, çok çeşitli malzemeler her yönden zorlanmadan taranabilir. Döner tabla ile birlikte, 4 eksenli tarama ile ölçüm işleri bile gerçekleştirilebilir.
