ZEISS ScanBox Series 4
Üretim ortamı için mobil bağımsız ölçüm çözümüZEISS ScanBox 4105 optik 3D ölçüm makinesi ile 500 mm'ye kadar boyutlardaki küçük ve karmaşık parçaları hızlı ve verimli bir şekilde muayene edebilirsiniz. Kompakt ve mobil sistem, "tak ve çalıştır" konsepti sayesinde hemen kullanıma hazırdır ve gerektiğinde kolayca yeniden konumlandırılabilir. Tüm ölçüm prosesleri ve muayene dizileri doğrudan entegre işletim istasyonunda başlatılabilir. Kiosk Interface adlı özel kullanıcı arayüzü ve ZEISS INSPECT yazılımındaki virtual measuring room (VMR) tüm proses kontrolünü üstlenir.
ZEISS ScanBox Series 4
Tek sistem, birçok fırsatHemen kullanıma hazır ve kolay kullanım
ZEISS ScanBox Series 4, enjeksiyon kalıplama ve basınçlı döküm parçalarınızın, takımlarınızın veya şekillendirilmiş, preslenmiş ve bükülmüş parçalarınızın etkin kalite güvencesi için ideal çözümdür.
![Tak ve Çalıştır]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.100.75.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.360.270.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.768.576.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.960.720.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.960.720.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.960.720.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg/_jcr_content/renditions/original.image_file.960.720.319,0,1279,720.file/zeiss_scanbox_4105_for_emotors_simple_operation_plug-play_emotors_1280_720.jpg"} "Tak ve Çalıştır")
Tak ve Çalıştır
Anahtar teslim 3D ölçüm makinesiZEISS ScanBox 4105 herhangi bir standart elektrik prizine bağlanabilir: Optik 3D ölçüm cihazını açmanız ve ölçüm programını başlatmanız yeterlidir.
![Kolay kullanım]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.100.75.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.360.270.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.768.576.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.1024.768.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.1280.960.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_kiosk_1280_720_frontal.jpg"} "Kolay kullanım")

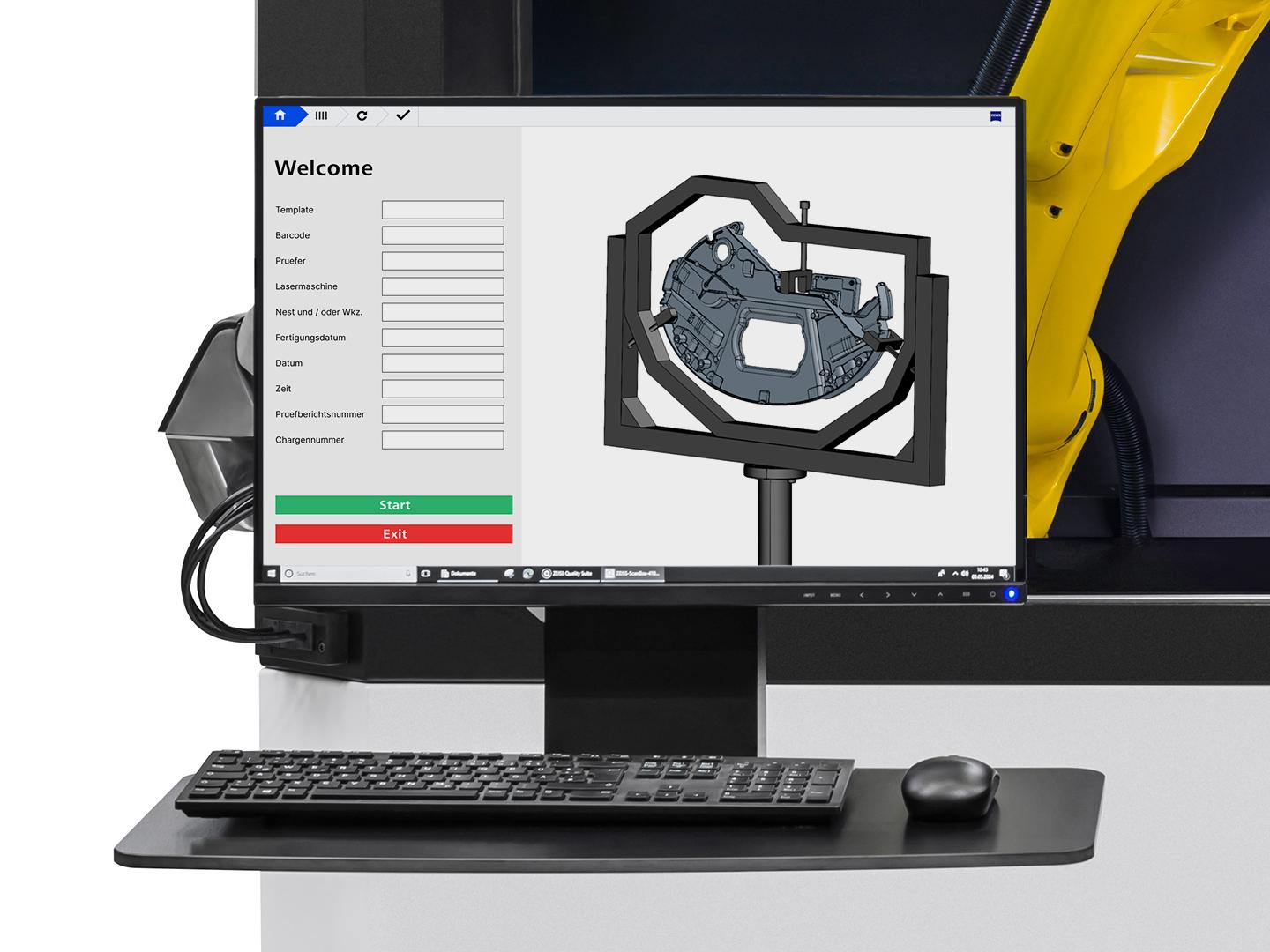

Kolay kullanım
Tek bir düğme dokunuşuyla otomatik proses kontrolüOptik 3D ölçüm makinesini basit bir kullanıcı arayüzü olan Kiosk Interface üzerinden programlayın ve kontrol edin. Tesis çalışanlarınızın makineyi çalıştırabilmek için özel teknik bilgiye sahip olması gerekmez: Parçayı yerleştirin, ölçüm programını seçin ve başlat düğmesine basın.
![Ergonomik fonksiyonlar]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_ergonomic_functions.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_ergonomic_functions.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_ergonomic_functions.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_ergonomic_functions.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.1280.960.file/zeiss_scanbox_4105_ergonomic_functions.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/zeiss_scanbox_4105_ergonomic_functions.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_ergonomic_functions.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_ergonomic_functions.jpg"} "Ergonomik fonksiyonlar")

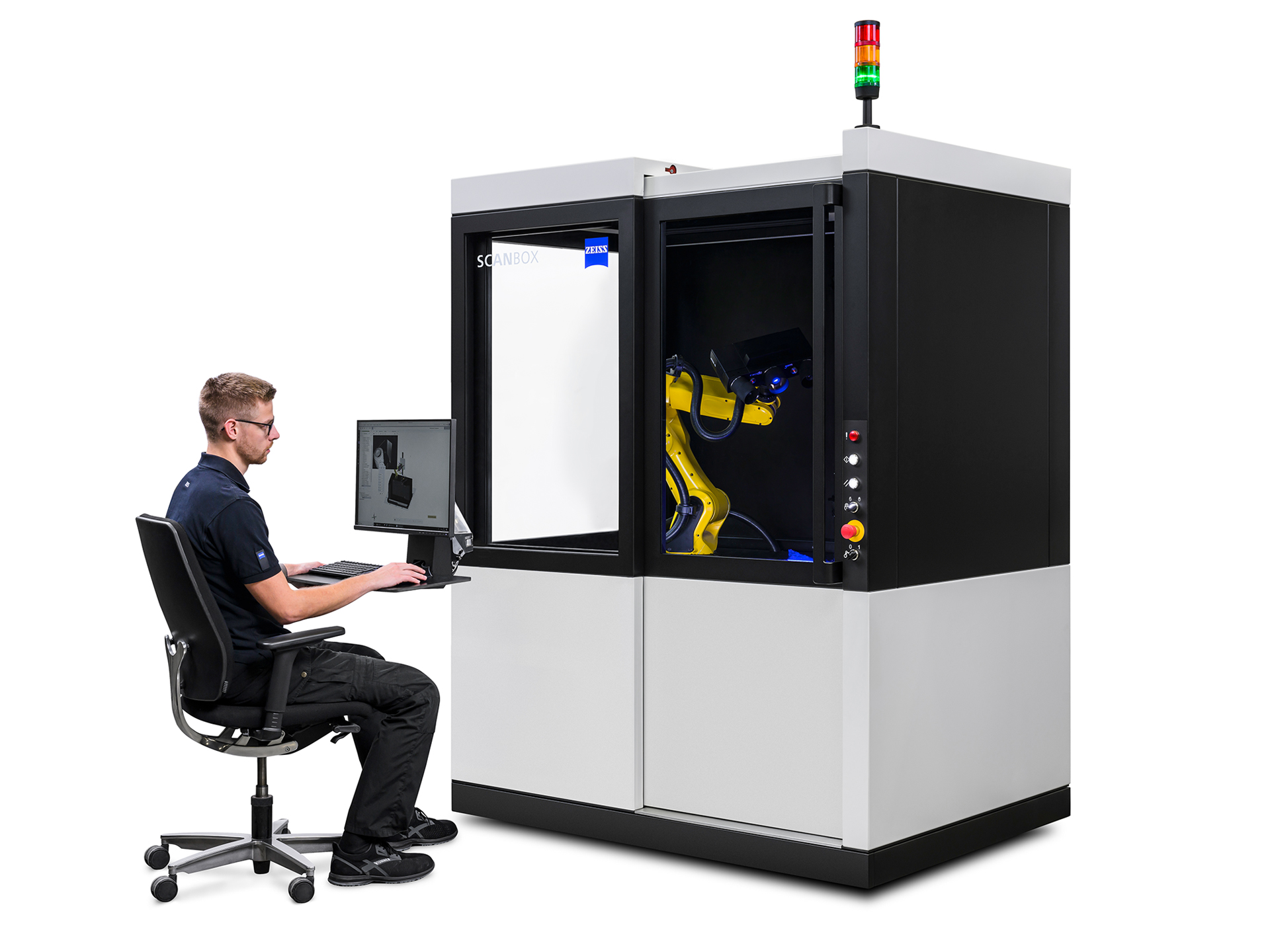

Ergonomik fonksiyonlar
Ayakta veya oturarak çalıştırmaEsnek çalışma istasyonu çeşitli ergonomik fonksiyonlar sunar: Entegre döner kol, ZEISS ScanBox 4105'in ayakta durarak veya oturarak çalıştırılabilmesi için istenen konuma ayarlanabilir.
![Otomatik yükleme ve otonom parça muayenesi]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.100.75.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.360.270.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.768.576.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.1024.768.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.1280.960.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.1440.1080.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc.jpg/_jcr_content/renditions/original.image_file.1707.1280.107,0,1814,1280.file/zeiss_scanbox_4105_rc.jpg"} "Otomatik yükleme ve otonom parça muayenesi")

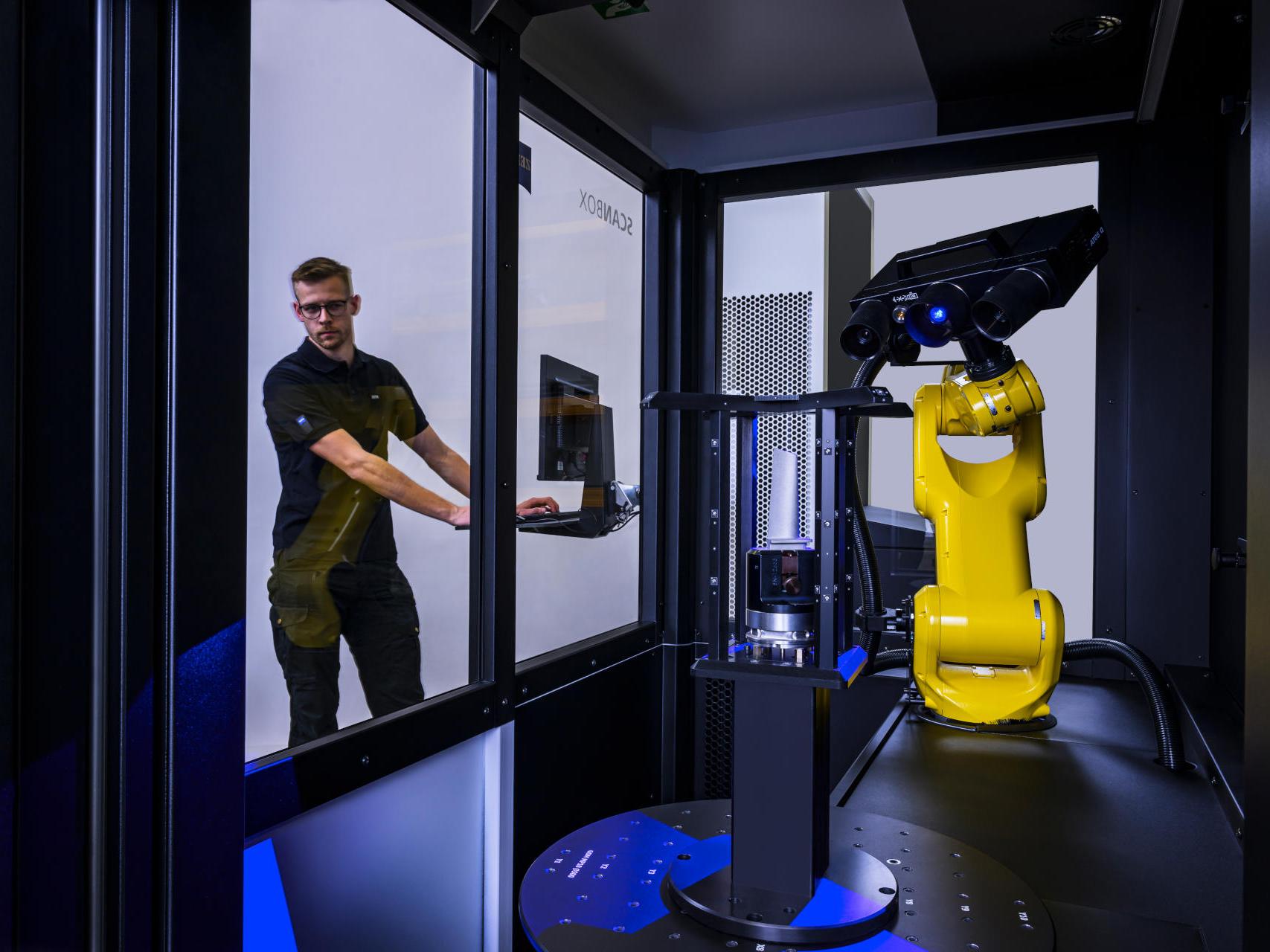

Otomatik yükleme ve otonom parça muayenesi
ZEISS ScanBox Series 4 RCZEISS ScanBox Series 4 RC (Remote Control), motorlu sürgü kapıya sahip yeni bir optik 3D ölçüm makinesidir. Muayene edilecek parçalar, bir robot veya ayrı olarak yapılandırılmış bir yükleme sistemi tarafından otomatik olarak ZEISS ScanBox Series 4 RC'ye yüklenir ve döner tabla modülüne yerleştirilir. Manuel tek tek yerleştirme işleminin ortadan kalkması gereken süreyi önemli ölçüde kısaltarak kalite güvencesinde daha yüksek verim sağlar.
![Hızlı ve hassas]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.100.75.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.360.270.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.768.576.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.1024.768.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.1280.960.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_hohe_durchsaetze_1080_.jpg"} "Hızlı ve hassas")

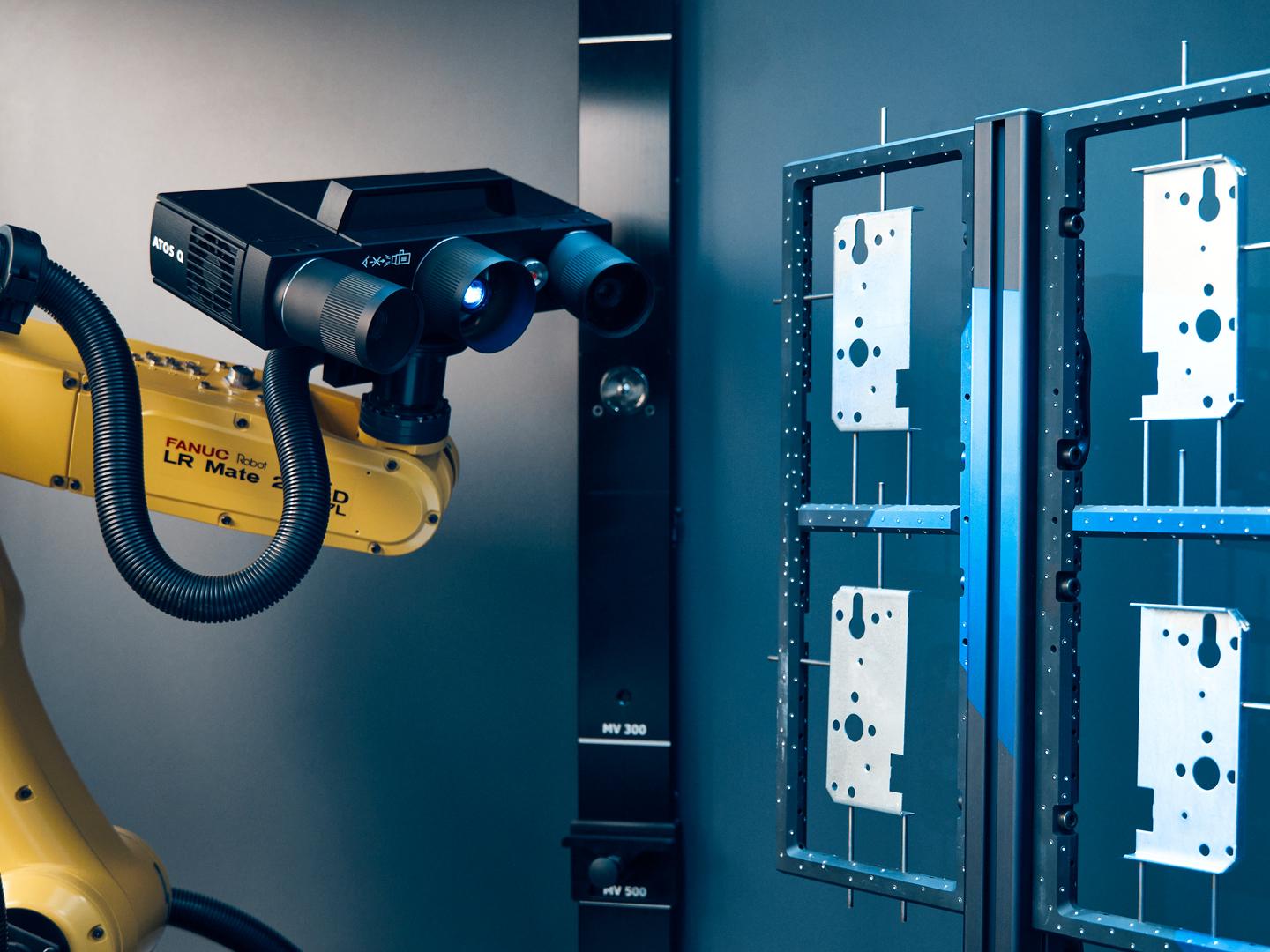

Hızlı ve hassas
ATOS Q zorlu metrolojik talepleri karşılarEntegre ATOS Q sensörü, sonraki muayene ve analizler için hızlı bir şekilde yüksek düzeyde ayrıntılı kaliteli bilgi sağlar. Çok parçalı bir fikstür kullanarak birden fazla parçayı tek seferde, hatta gerekirse 7/24 çalışmada ölçebilirsiniz: Bu da veriminizi artırmanıza, daha az ıskarta ortaya çıkmasına ve kalite güvencenizi standartlaştırmanıza olanak tanır.
![Virtual Measuring Room]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg"} "Virtual Measuring Room")
Virtual Measuring Room
Sanal bir simülasyonda gerçek ortamVirtual Measuring Room (VMR), optik 3D ölçüm makinesinin tüm elemanları için merkezi kontrol ve ölçüm planlama yazılımıdır. Sanal bir simülasyonda gerçek bir ölçüm ortamının işlevsel temsilini sunar. VMR, sensörlü bir robottan ve robot yollarının kinematiği, parça ve ölçüm planı dahil olmak üzere programlamadan oluşur. VMR sayesinde kullanıcının herhangi bir özel robot uzmanlığına sahip olması gerekmez. Tüm robot hareketleri yürütülmeden önce Virtual Measuring Room yazılımında simüle edilir ve güvenlik açısından kontrol edilir.
![Etkili analiz aracı]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg"} "Etkili analiz aracı")
Etkili analiz aracı
ZEISS INSPECT her şeyi tek bir kaynaktan sunarYazılım tarama, denetim ve raporlamadan oluşan GD&T'nin yanı sıra nominal-gerçek karşılaştırmalarını da değerlendirin. Kolay anlaşılır sonuçlar sayesinde gerekli düzeltmeleri doğrudan uygulayın. ZEISS INSPECT ile eksiksiz analizler yapabilir, kapsamlı raporlar alabilir ve ölçüm sonuçlarını mevcut proseslere entegre edebilirsiniz.
ZEISS ScanBox Series 4

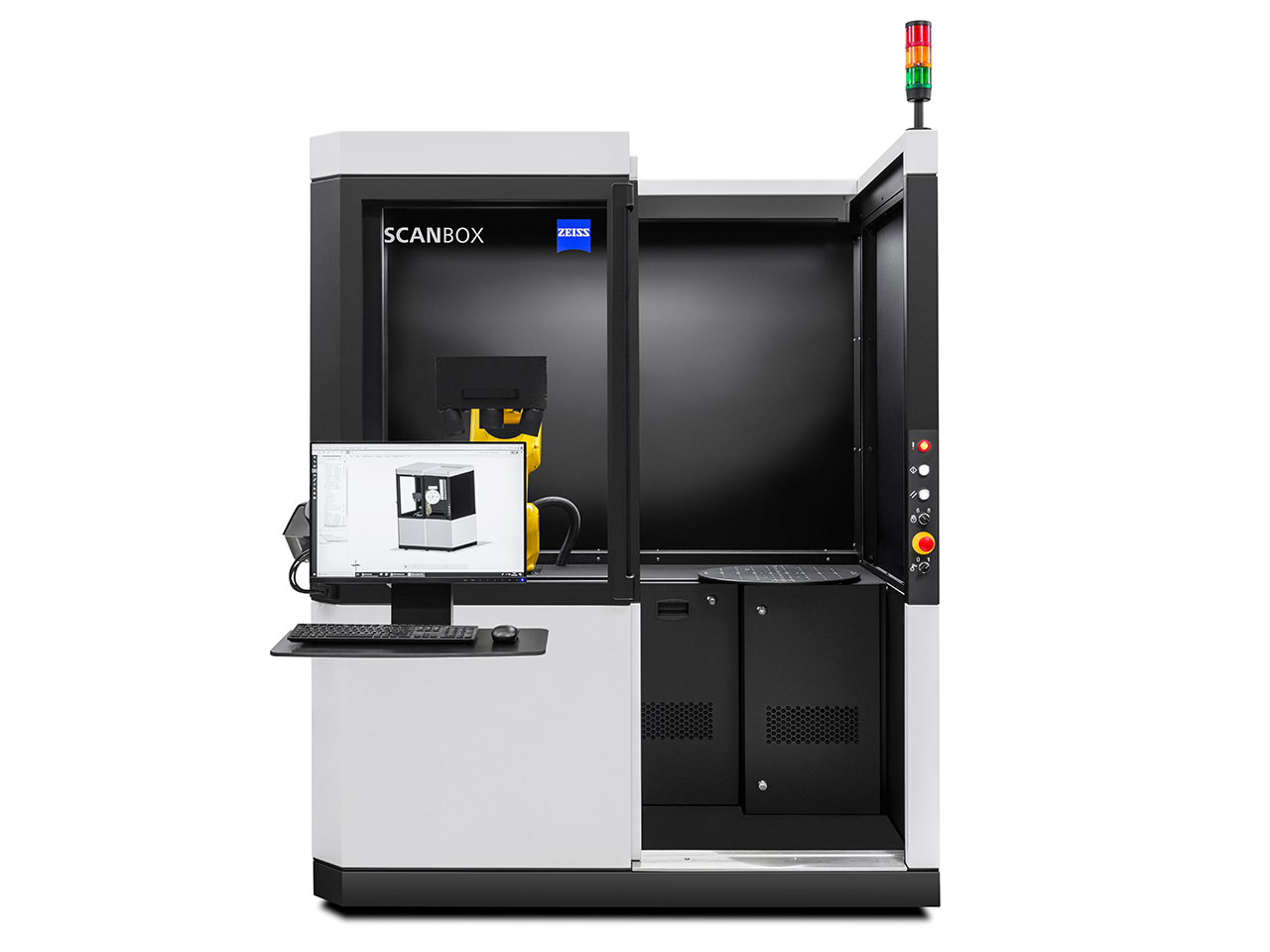

![ZEISS ScanBox 4105]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_feature_comparison.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_feature_comparison.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_feature_comparison.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_feature_comparison.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison.jpg"} "ZEISS ScanBox 4105")

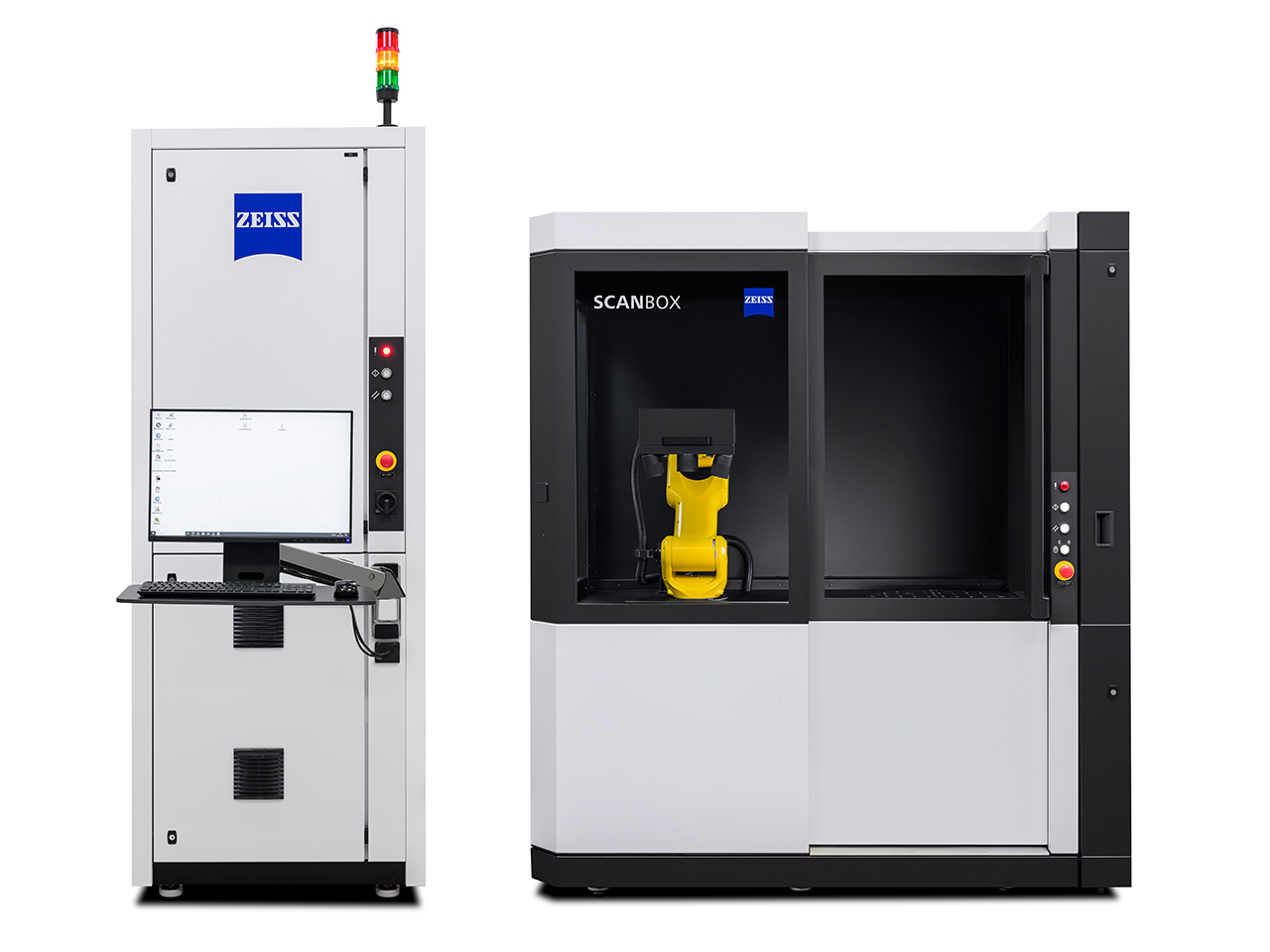

![ZEISS ScanBox 4105 RC]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_feature_comparison_rc.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_feature_comparison_rc.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_feature_comparison_rc.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_feature_comparison_rc.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison_rc.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison_rc.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox_4105_feature_comparison_rc.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_feature_comparison_rc.jpg"} "ZEISS ScanBox 4105 RC")

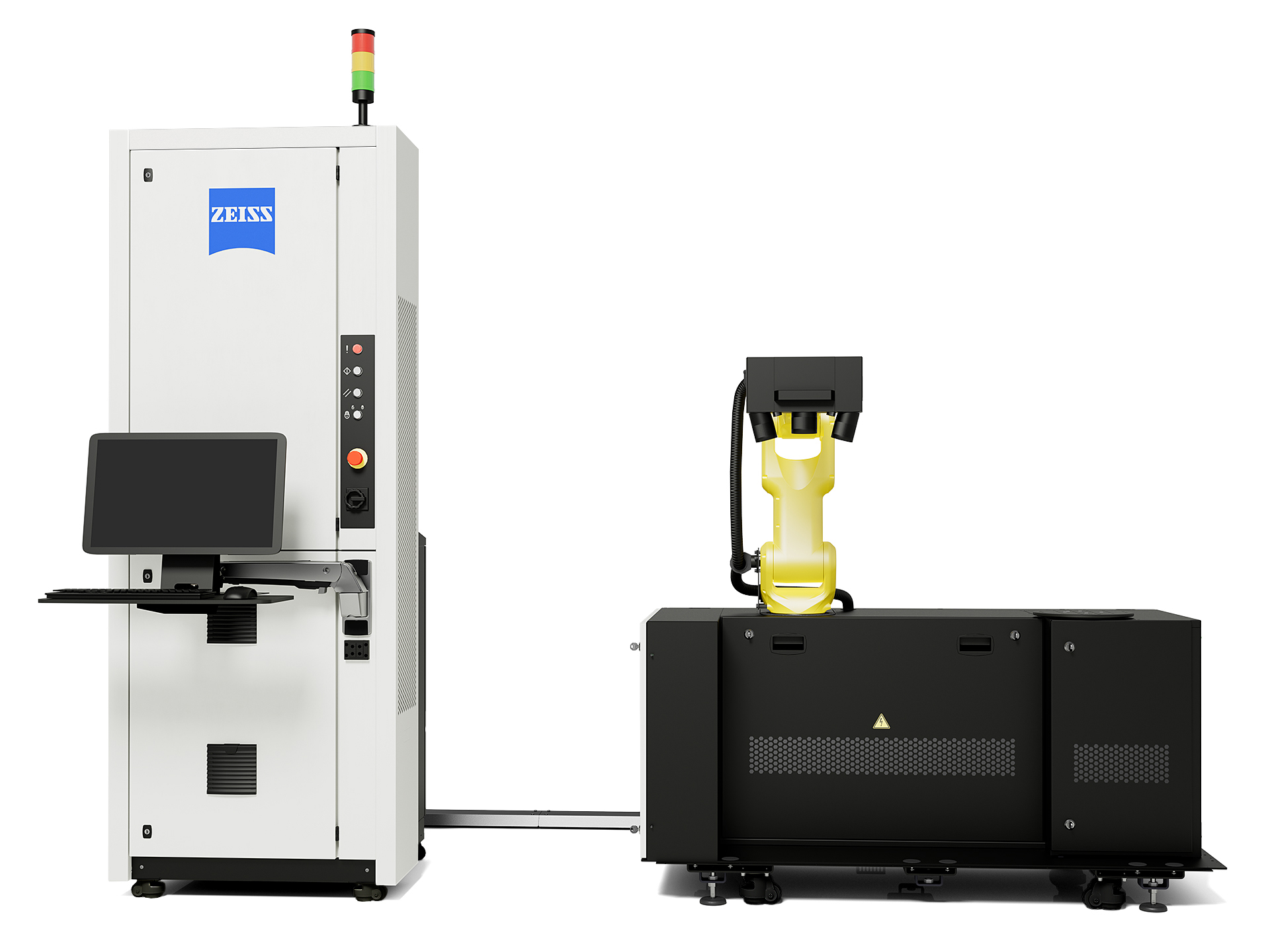

![ZEISS ScanBox Series 4 MU]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.100.75.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.360.270.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.768.576.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.1024.768.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.1280.960.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original.image_file.1440.1080.file/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg/_jcr_content/renditions/original./2024_zeiss-scanbox_4105-mu_frontal_1920x1440.jpg"} "ZEISS ScanBox Series 4 MU")
Kaynakları indirin
![ZEISS ScanBox Brochure EN öğesinin ön izleme görüntüsü]({"max":"https://asset-downloads.zeiss.com/catalogs/preview/iqs/d3625f36-bfdb-414e-a91a-2c0b9c30ae2e/2025_ScanBox_BR_Digital_EN.pdf.pdf.jpg"} "ZEISS ScanBox Brochure EN öğesini indir")
Teknik veriler
|
Boyutlar |
1700 x 1200 x 2420 mm |
|---|---|
|
Güç kaynağı |
Standart, 100 - 240 V (1 fazlı, 16 A) |
|
Maks. parça boyutu |
Ø 500 mm |
|
Maks. parça ağırlığı |
100 kg |
|
Açılma genişliği |
680 mm |
|
Sensör uyumluluğu |
ATOS Q |
