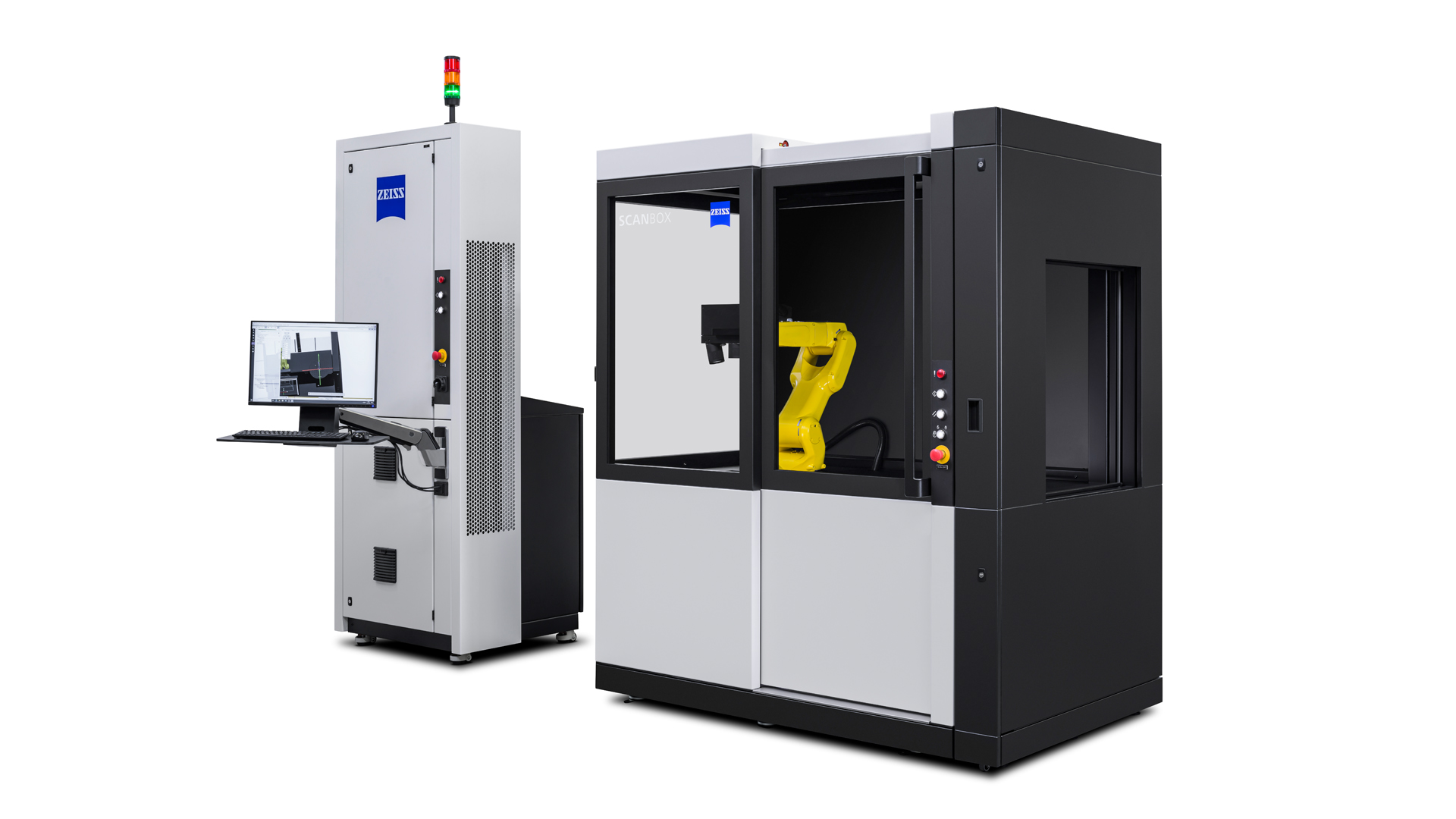

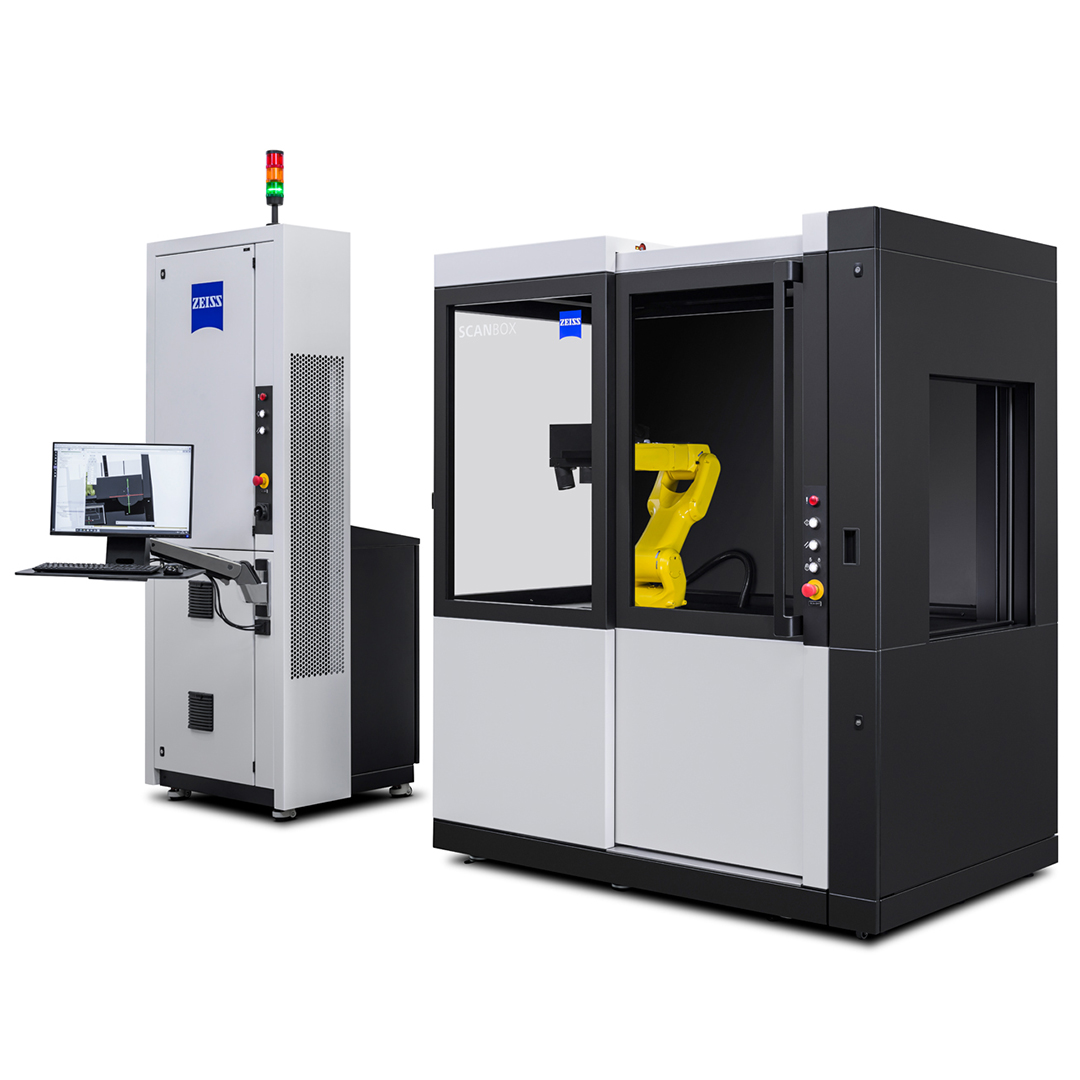

ZEISS ScanBox Series 4 RC
Parçaların otomatik yüklenmesi ve ölçümü
ZEISS ScanBox 4105 RC (Remote Control), motorlu sürgü kapıya sahip optik bir 3D ölçüm makinesidir. Boyutları 500 mm'ye kadar olan parçalar, bir robot veya ayrı olarak yapılandırılmış bir besleme sistemi ile ZEISS ScanBox 4105 RC'ye yüklenebilir ve döner tabla modülüne yerleştirilebilir. Manuel tek tek yerleştirme işleminin ortadan kalkması gereken süreyi önemli ölçüde kısaltır ve böylece kalite güvencesinde daha yüksek verim sağlar.
Otonom parça muayenesi

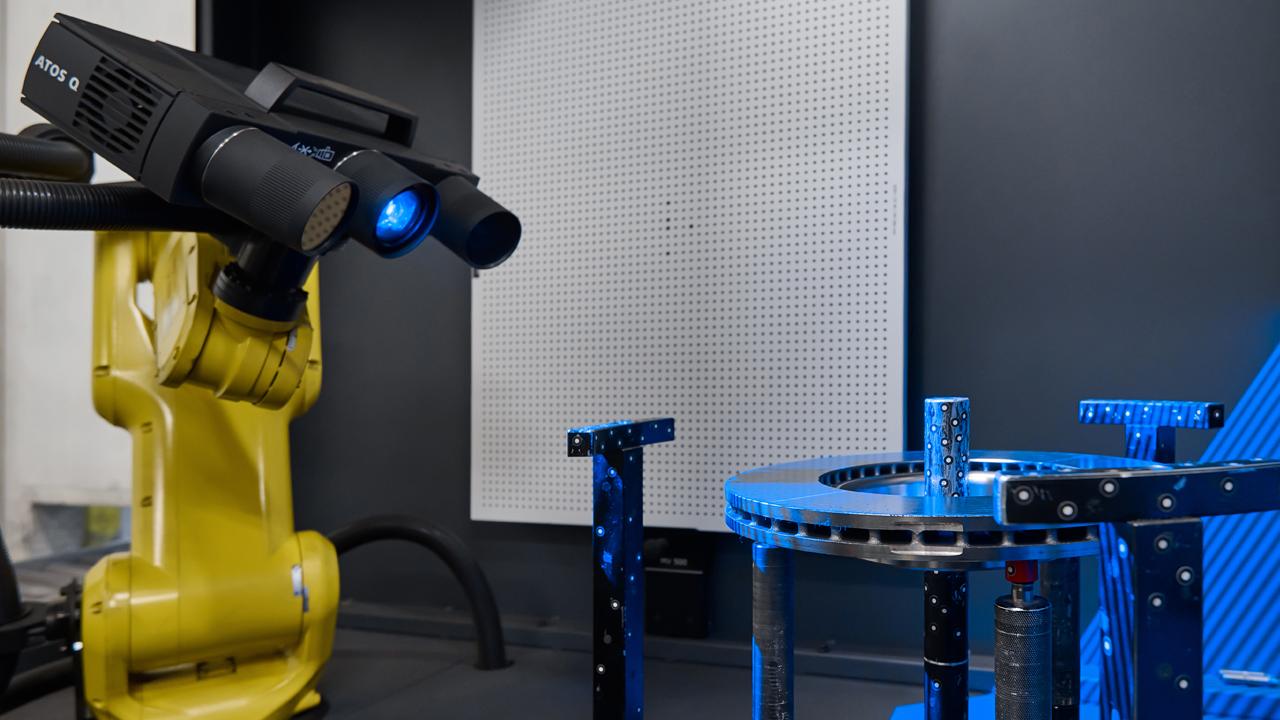

ZEISS ScanBox Series 4 RC'nin otonom çalışması, makine kullanımını artırır, ölçüm döngü sürelerini hızlandırır ve personelinizi daha verimli bir şekilde kullanmanızı sağlar. Sistem, yüksek düzeyde verim ve entegrasyon gerektiren uygulamalar için özel olarak geliştirilmiştir.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.100.56.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.360.203.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.768.432.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1024.576.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg/_jcr_content/renditions/original.image_file.1280.720.0,39,1280,759.file/zeiss_scanbox_series4_chapter4_vollautomatisiert_1280x960.jpg"})
Seri izleme için yüksek verim
Tekrarlanabilir ve hassas ölçüm dizileri
Seri ürünlerinin verimli kalite güvencesi için üretim prosesleri izlenmeli, ıskarta miktarı azaltılmalı ve maliyetli yeniden çalışma ihtiyacı en aza indirilmelidir. ATOS Q sensörlü optik 3D ölçüm makinesi ZEISS ScanBox Series 4 RC size bu konuda destek olur: Seri parçalarının tam alan gerçek verileri doğrudan CAD modeliyle veya ölçüm planındaki spesifikasyonlarla karşılaştırılabilir. Doğrudan üretim tesislerinde denetim raporları oluşturun ve verileri doğrudan istatistiksel proses kontrol sistemlerine aktarın.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_header_1920_1080.jpg"})

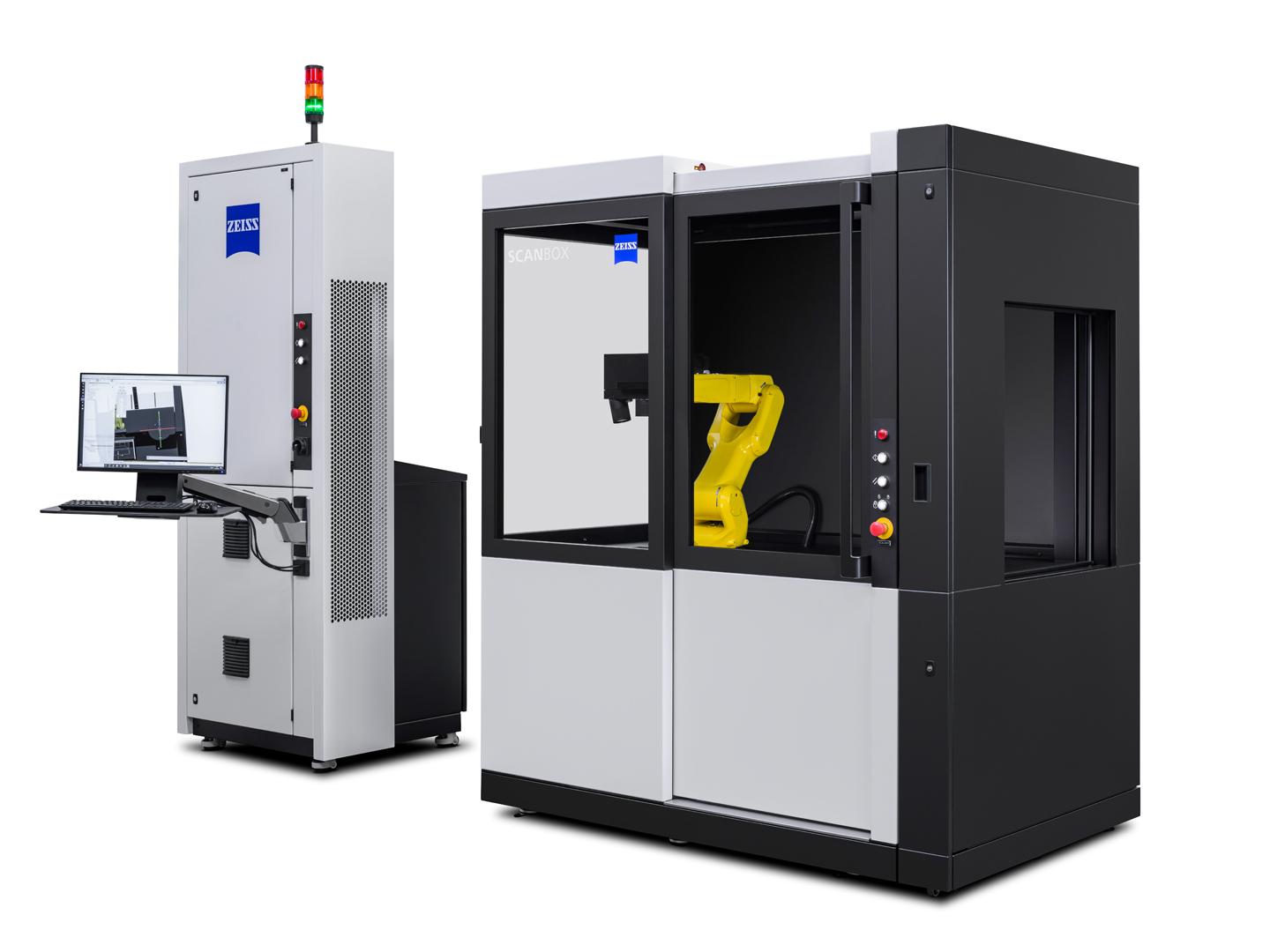

Otomatik proses kontrolü
Hızlı kurulum ve düşük personel maliyetleri
Optik 3D ölçüm cihazını kontrol kulesine entegre edilmiş ergonomik kullanıcı arayüzü üzerinden programlayın. ZEISS ScanBox 4105 RC ile otomatik parça muayenesi, daha yüksek düzeydeki bir kontrolörden gelen başlatma sinyali ile yürütülür. ZEISS, alan veri yollarına (CC-Link, ProfiBus, ProfiNet, EtherCat, EtherNet/IP, OPC UA) dayalı iletişim arayüzleri sunar.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original./zeiss-scanbox5-rc_2grid-maximal-machine.jpg"})

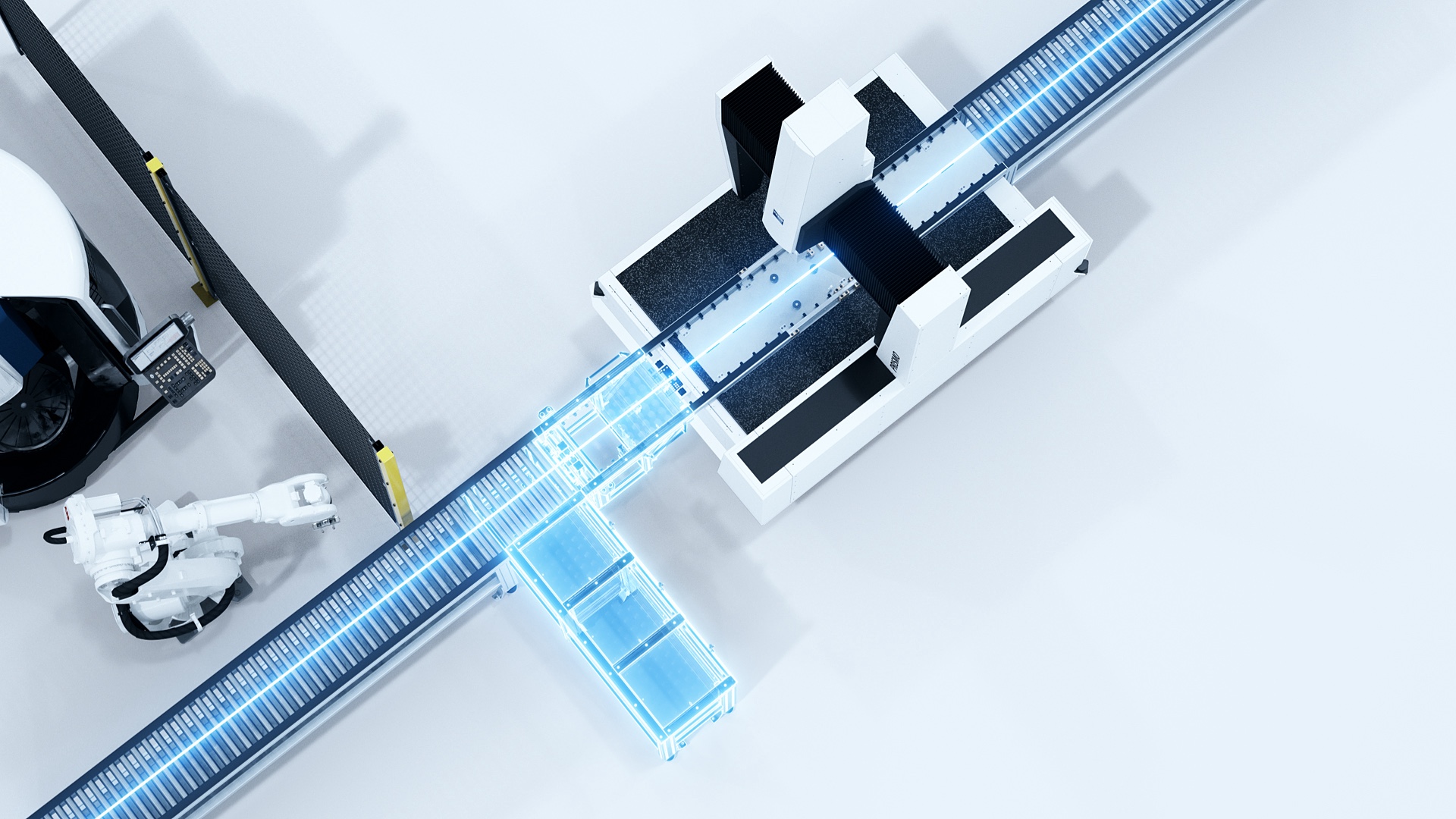

Maksimum makine kullanımı ve optimize edilmiş prosesler
Ayrı ayrı yapılandırılabilir yükleme sistemleri
Bir ZEISS besleme ve yükleme sistemiyle ZEISS ScanBox Series 4 RC'nin tüm potansiyelini açığa çıkarın. ZEISS Integration Series ile parçaların yüklenmesini otomatikleştirebilir ve duruş sürelerini önleyebilirsiniz. Parça akışı ve çalışma süresi optimize edilir.

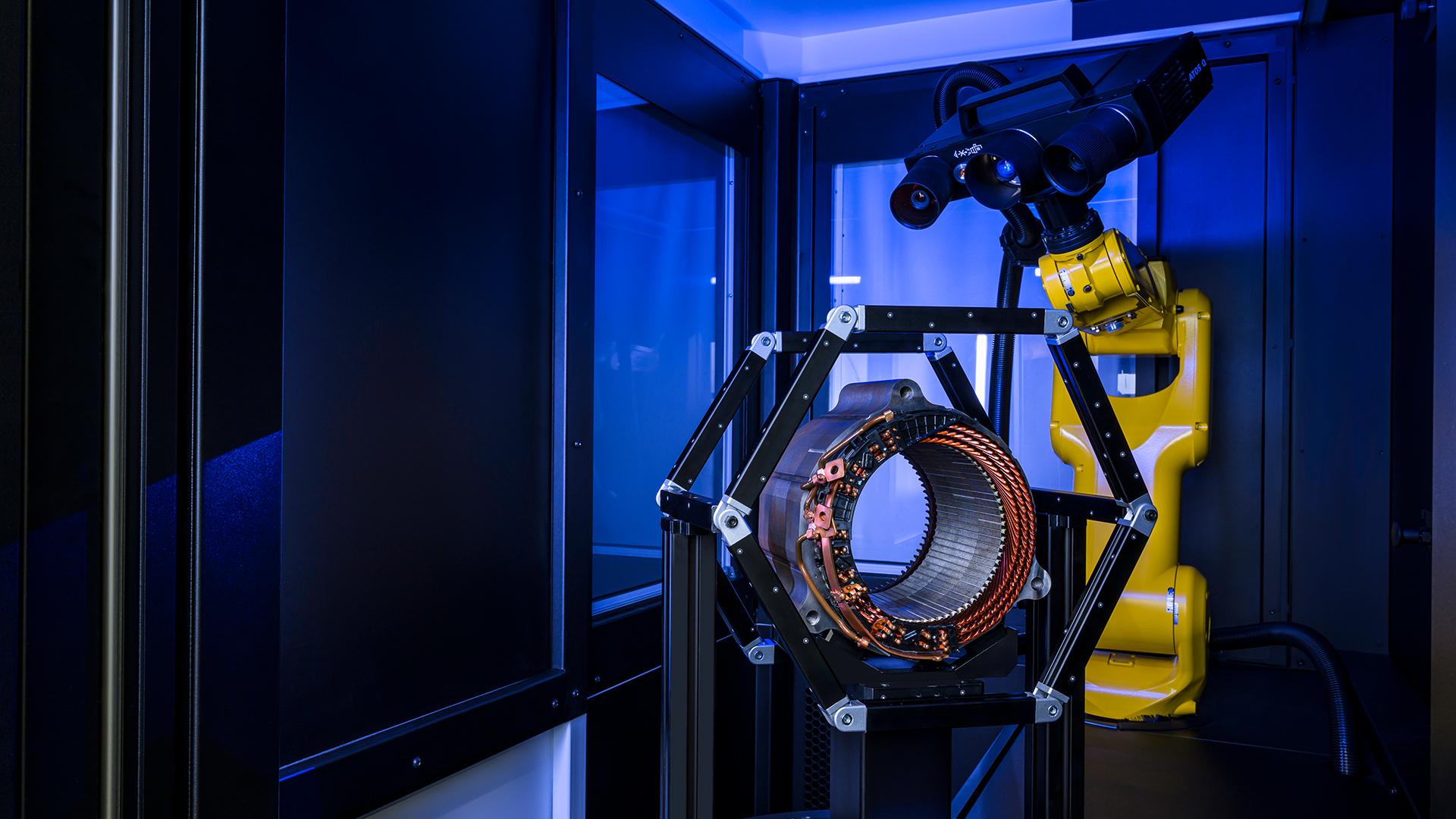

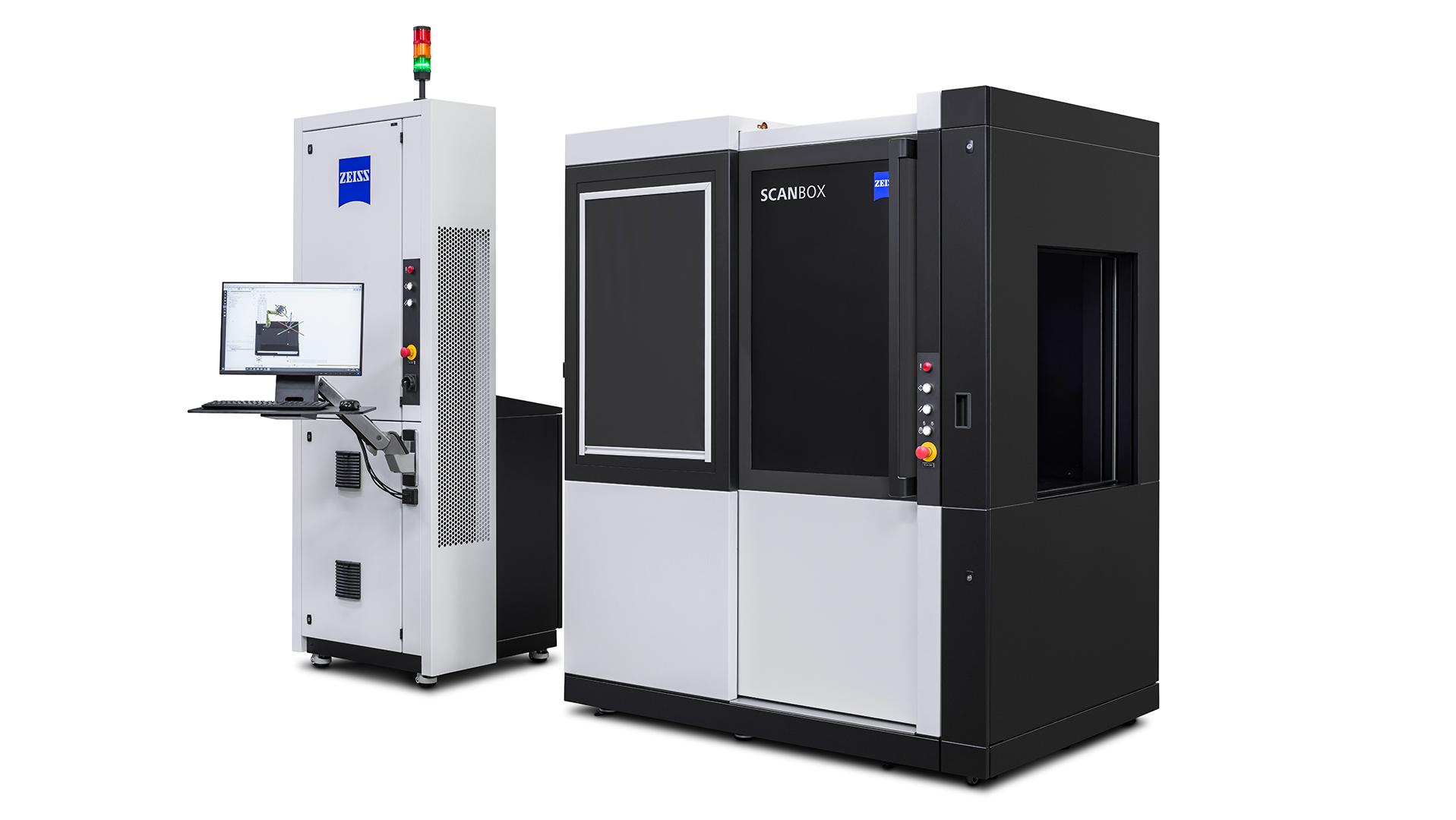

Statorlar ve hairpinler için tam otomatik kalite güvencesi
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg/_jcr_content/renditions/original.image_file.1919.1079.3,0,1922,1080.file/zeiss_scanbox_4105_rc_qualiaetskontrolle_von_statoren_1920_1080.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.432.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.576.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.720.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.810.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,0,1920,1082.file/zeiss_scanbox_4105_rc_atos_q_for_emotors_1920_1080.jpg"})

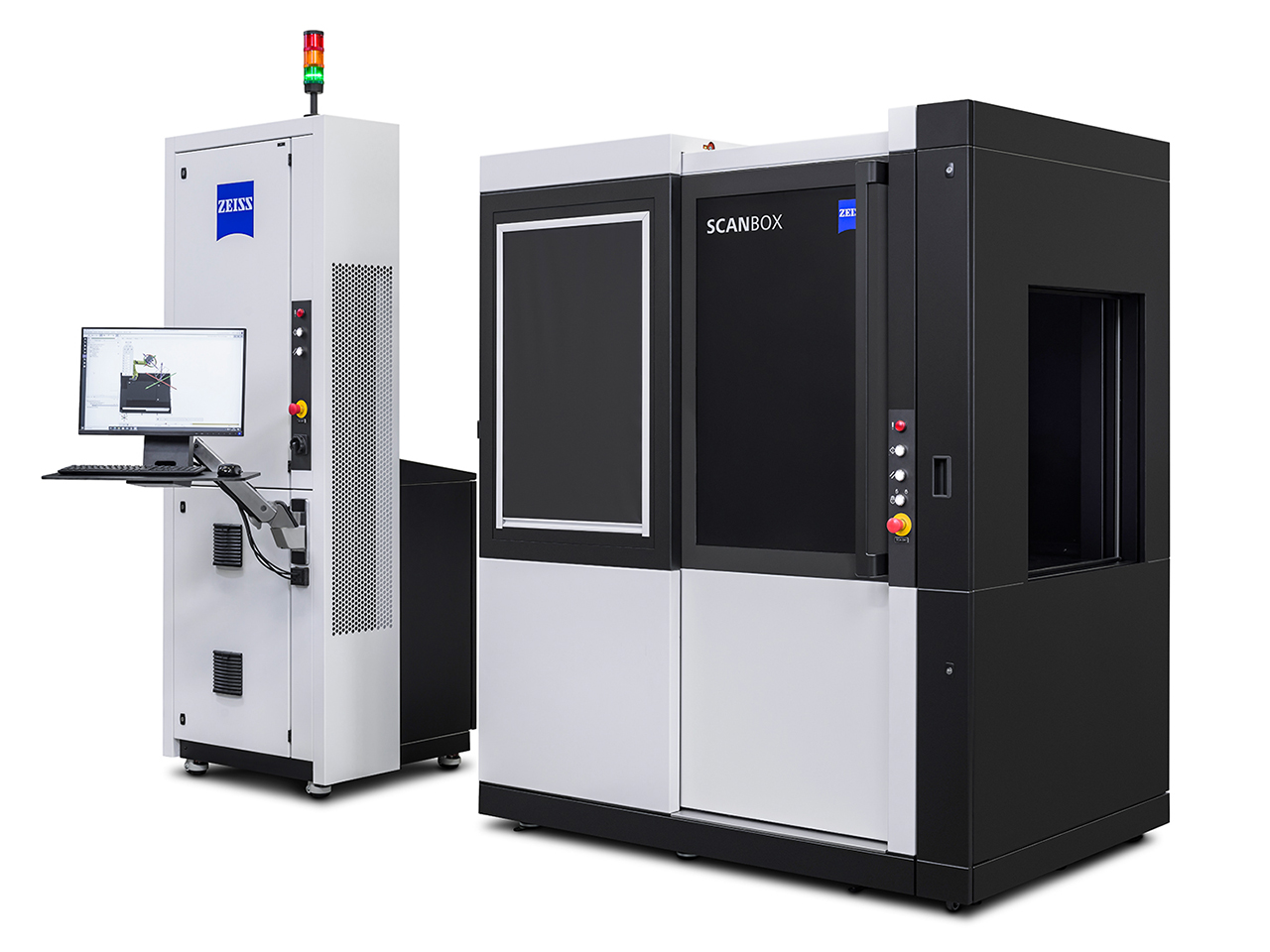

Parçaların otomatik olarak yüklenmesi ve muayenesi için iki model
Doğrudan üretimde otomatik kalite güvencesi ve seri izleme için ZEISS ScanBox 4105 RC ve ZEISS ScanBox 4105 RC for eMotors'u kullanın. Otomatik yükleme ve boşaltma, tekrarlanabilir ve hassas ölçüm prosesleri ve düşük personel maliyetleri sayesinde çalışanlarınızı daha verimli bir şekilde görevlendirebilirsiniz.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.100.75.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.360.270.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.768.576.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1024.768.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1280.960.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_header_1920_1080.jpg/_jcr_content/renditions/original.image_file.1440.1080.240,0,1680,1080.file/zeiss_scanbox_4105_rc_header_1920_1080.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.100.75.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.360.270.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.768.576.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original.image_file.1024.768.file/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg/_jcr_content/renditions/original./zeiss_scanbox_4105_rc_qualitaetskontrolle_von_statoren_1280_960.jpg"})

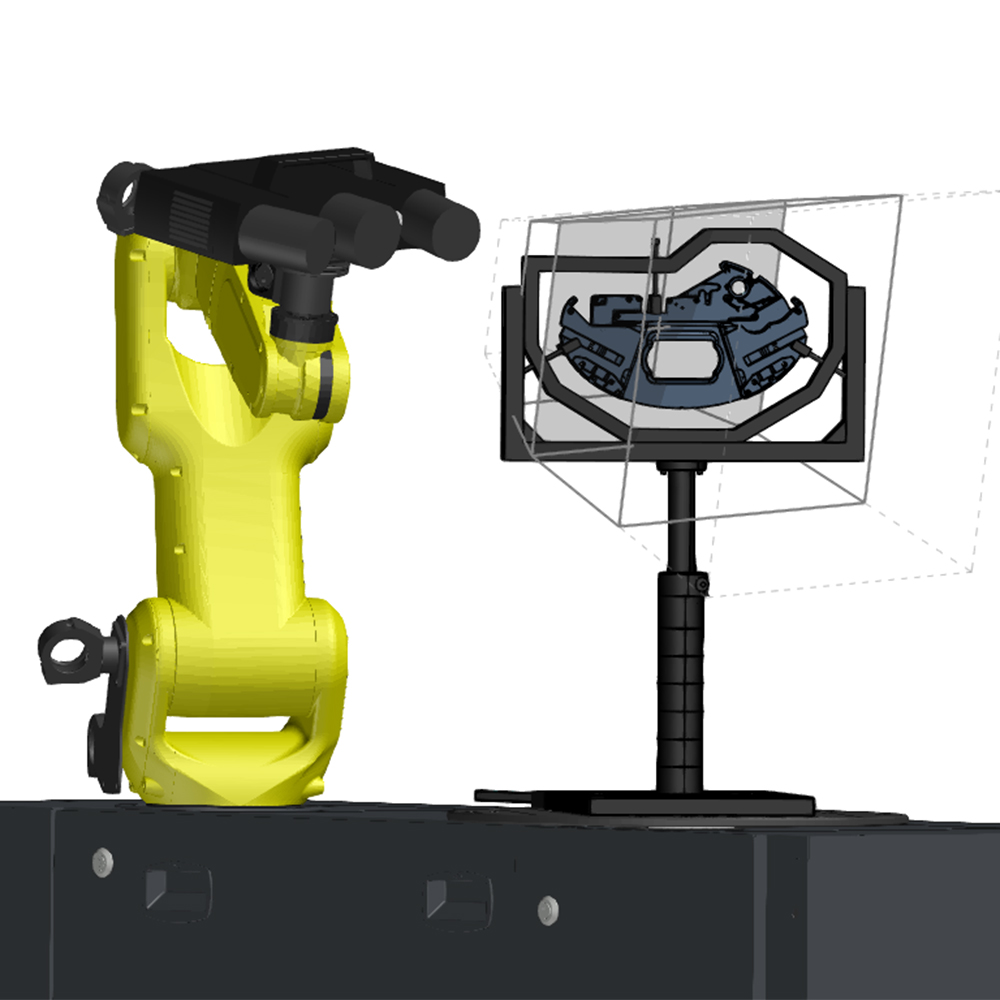

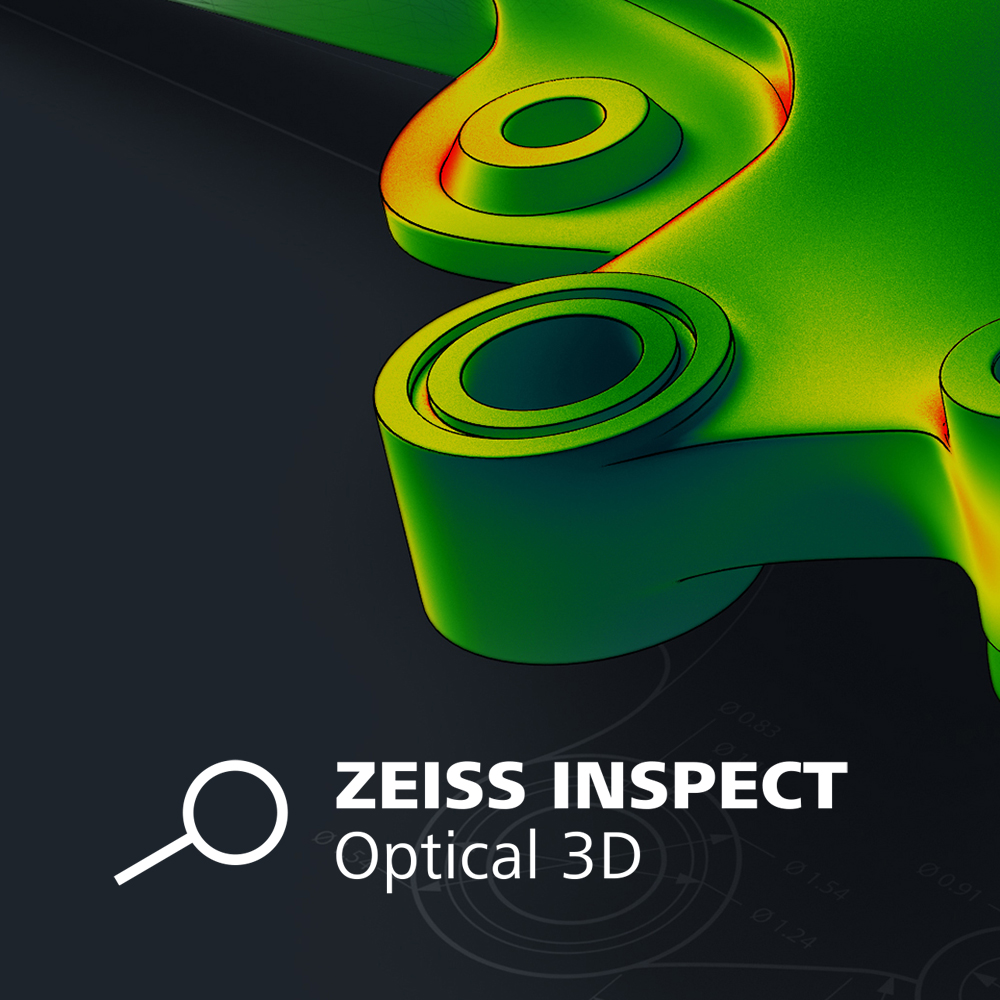

ZEISS INSPECT
3D muayene ve değerlendirmede sektör standardı
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg/_jcr_content/renditions/original./zeiss_scanbox-series4_chapter4_vmr_1000x1000.jpg"})
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/atos-scanbox-serie-4/zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg/_jcr_content/renditions/original./zeiss_inspect-opt3d_chapter4_effektives-analysetool_1000x1000.jpg"})

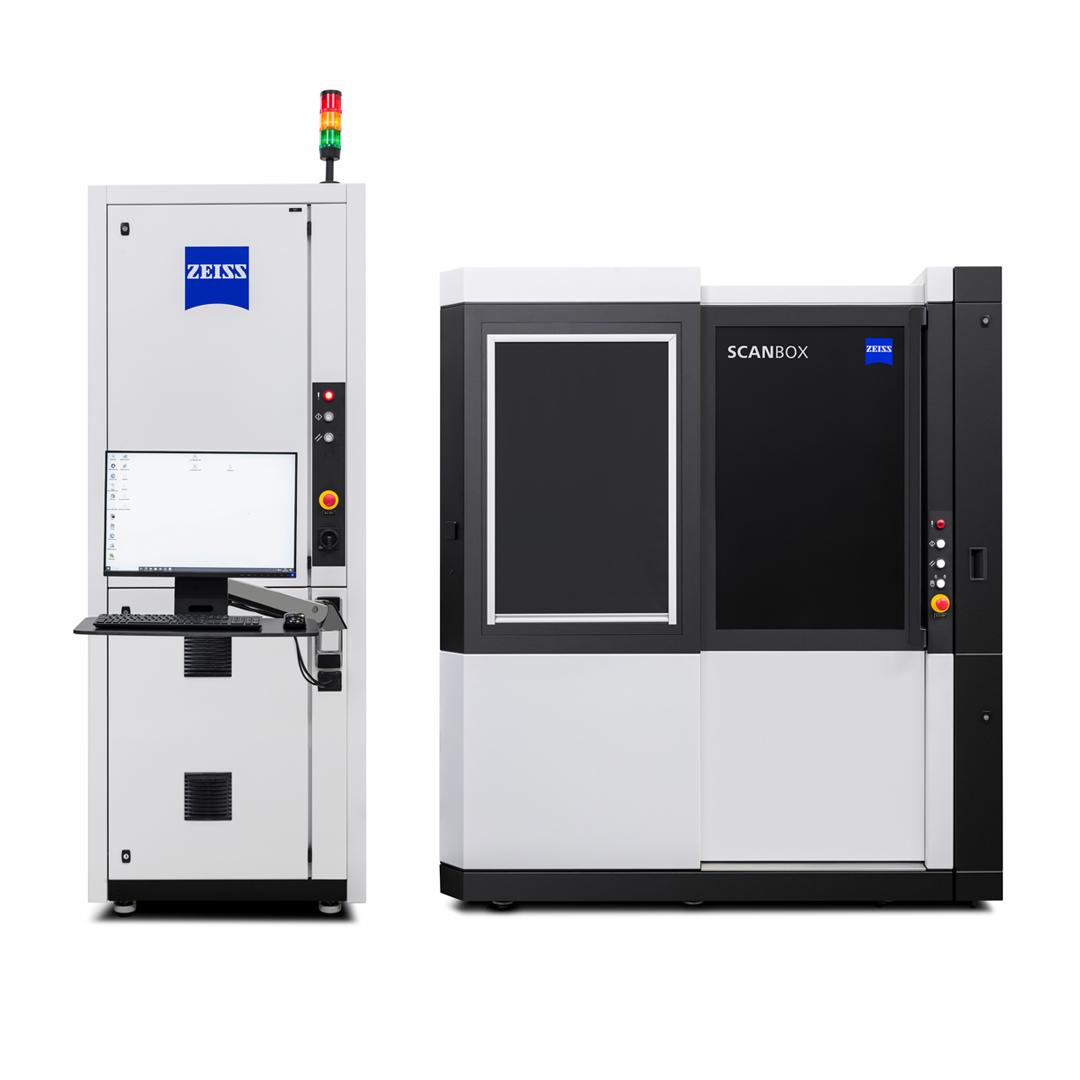

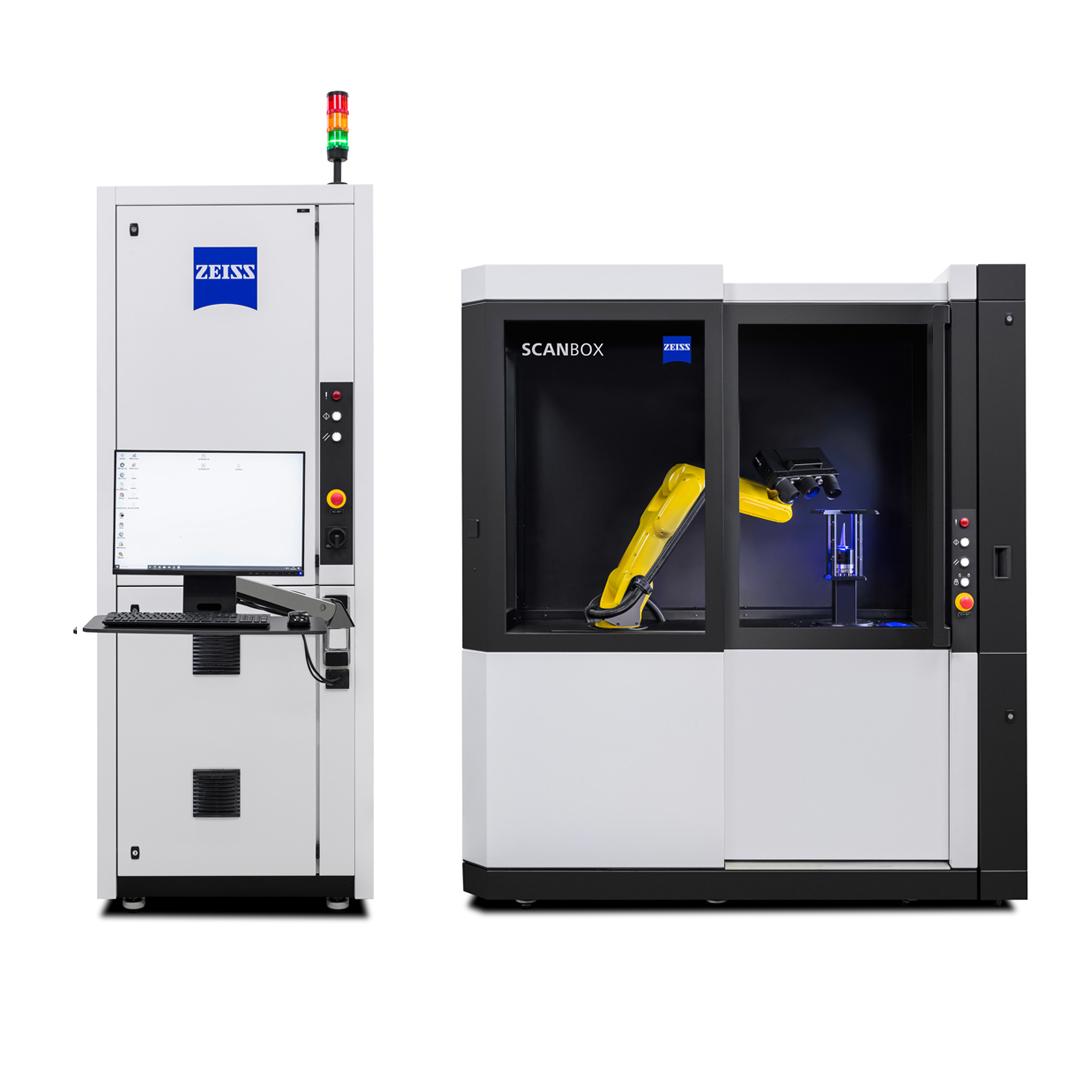

Teknik veriler
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_4_technical-data_1080_1080.jpg"})
|
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.100.100.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.360.360.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.768.768.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-series-4-rc/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg/_jcr_content/renditions/original.image_file.1080.1080.0,0,1080,1080.file/zeiss_scanbox_4105_rc_e-motors_technical-data_1080_1080.jpg"})
|
|
|---|---|---|
|
Boyutlar |
1860 x 1200 x 2120 mm |
1860 x 1200 x 2120 mm |
|
Güç kaynağı |
200-500 V (3 fazlı, 16 A) |
200-500 V (3 fazlı, 16 A) |
|
Maks. parça boyutu |
Ø 500 mm |
Ø 500 mm |
|
Maks. parça ağırlığı |
100 kg |
100 kg |
|
Açılma genişliği |
680 mm |
680 mm |
|
Sensör uyumluluğu |
ATOS Q |
ATOS Q for eMotors |
