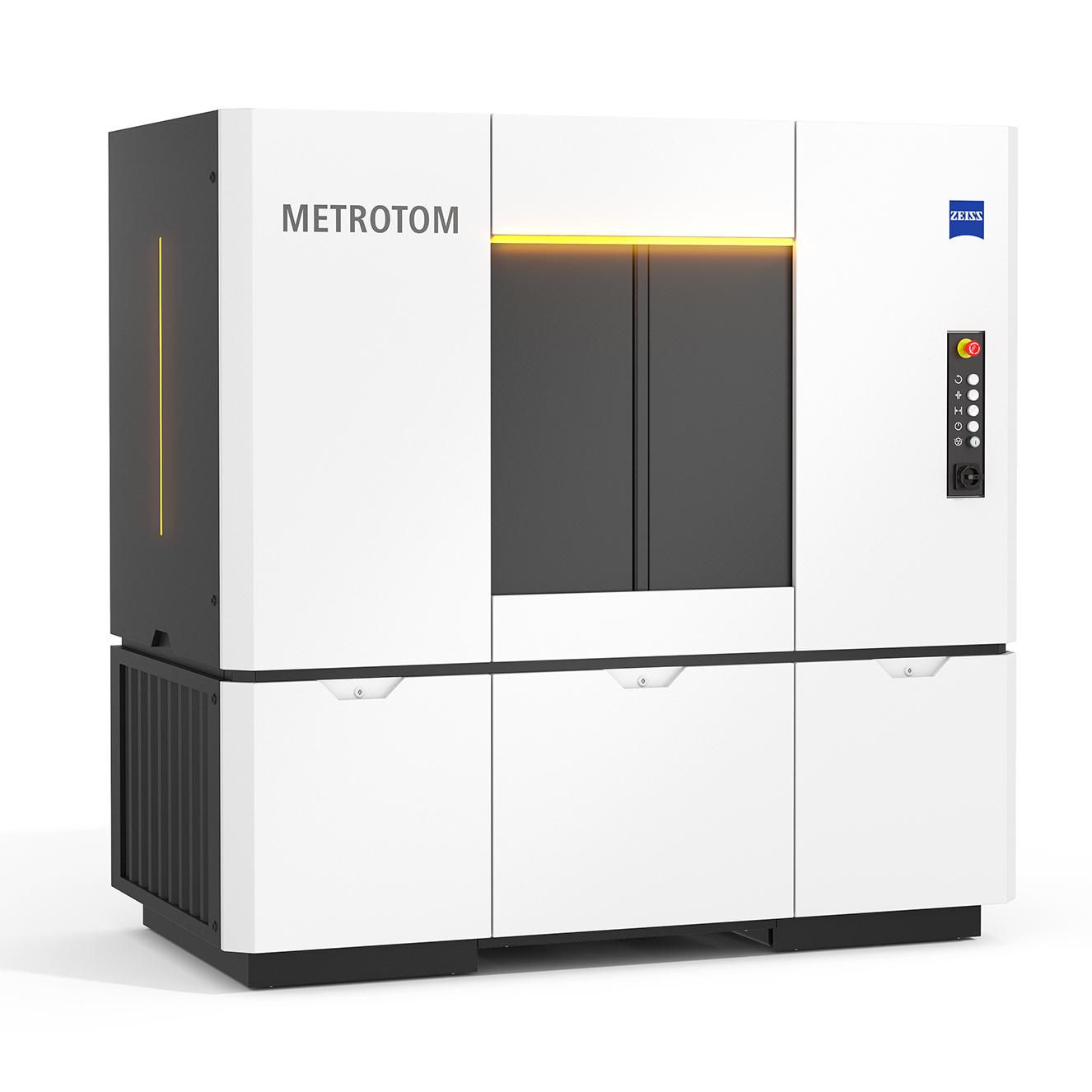

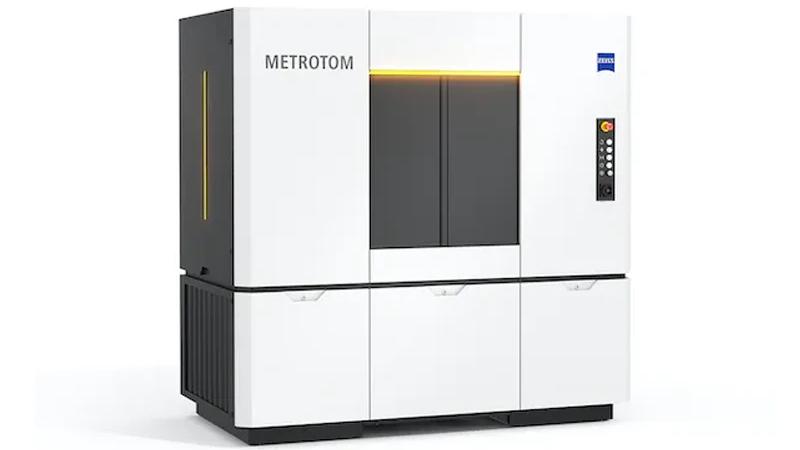

METROTOM 6 scout

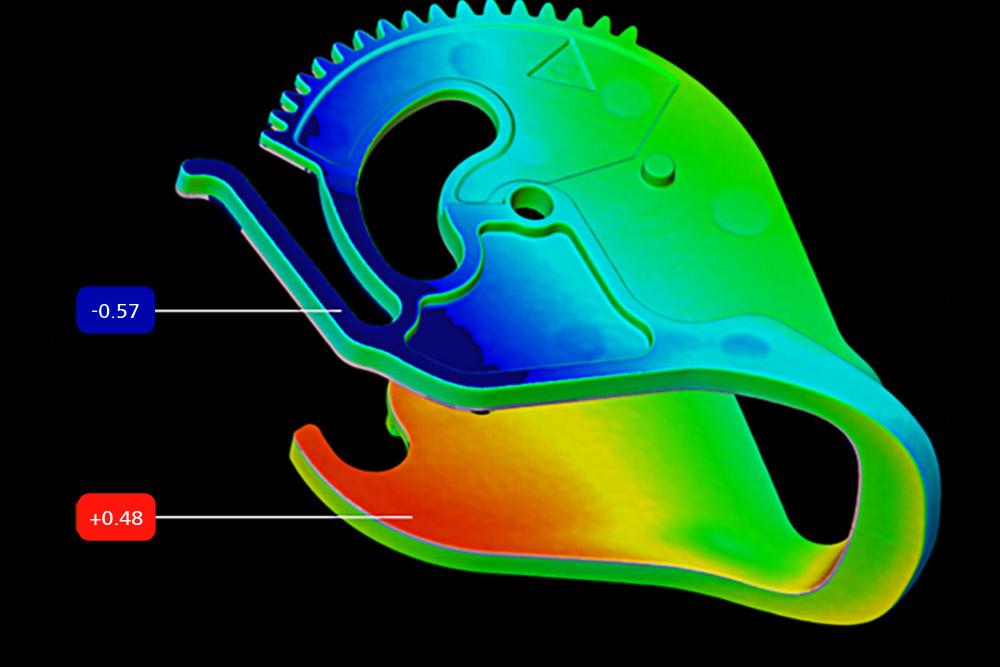

BT ile muayene ve metroloji uygulamalarında güçlü çözünürlükZEISS METROTOM 6 scout, iç geometriler de dahil olmak üzere karmaşık parçaları en ileri ayrıntı düzeyinde dijitalleştirir. Sonuç, GD&T analizi veya hedef/gerçek karşılaştırmaları için eksiksiz bir 3D görüntüdür. BT metroloji sistemi, küçük plastik parçaların dijitalleştirilmesi konusunda mükemmel bir seçimdir.
Küçük plastik parçaların yüksek çözünürlüklü ölçümleri
ZEISS Metrotom 6 scout, bileşenlerin tahribatsız muayenesi ve 3D metrolojisi için mükemmel çözümdür. Gelişmiş ölçüm performansı ve sorunsuz iş akışı, kusur tespitinde maksimum güvenilirlik ve hassasiyet sağlar.
![Diğer teknolojilerde gizli kalan kusurları açığa çıkarın]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg"} "Diğer teknolojilerde gizli kalan kusurları açığa çıkarın")
![Diğer teknolojilerde gizli kalan kusurları açığa çıkarın]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg"} "Diğer teknolojilerde gizli kalan kusurları açığa çıkarın")

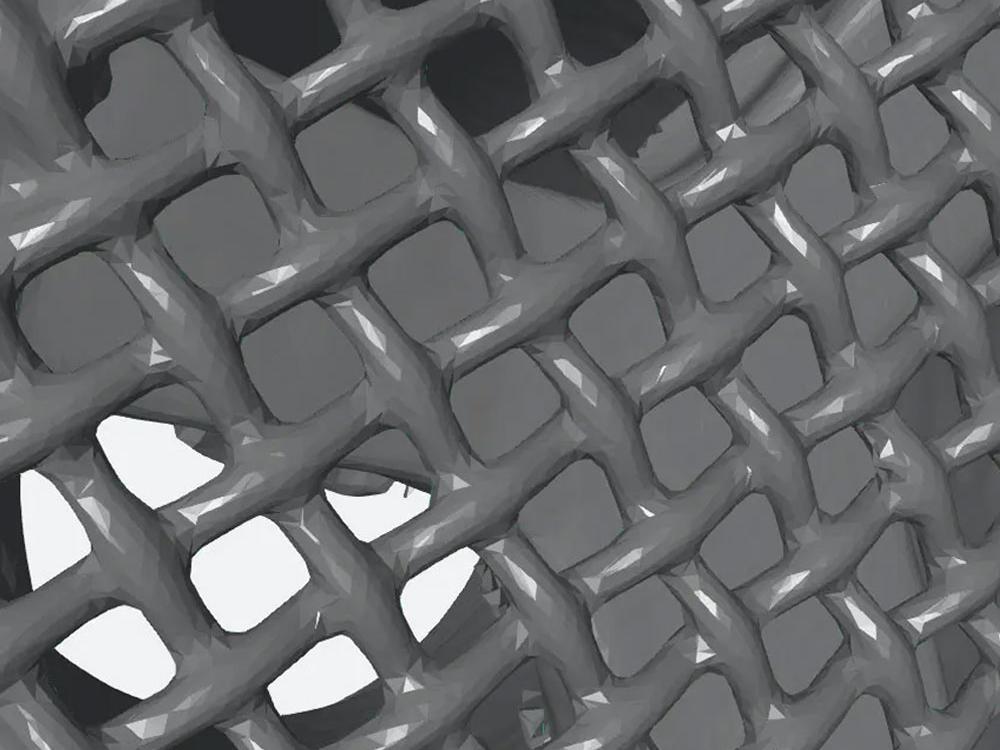

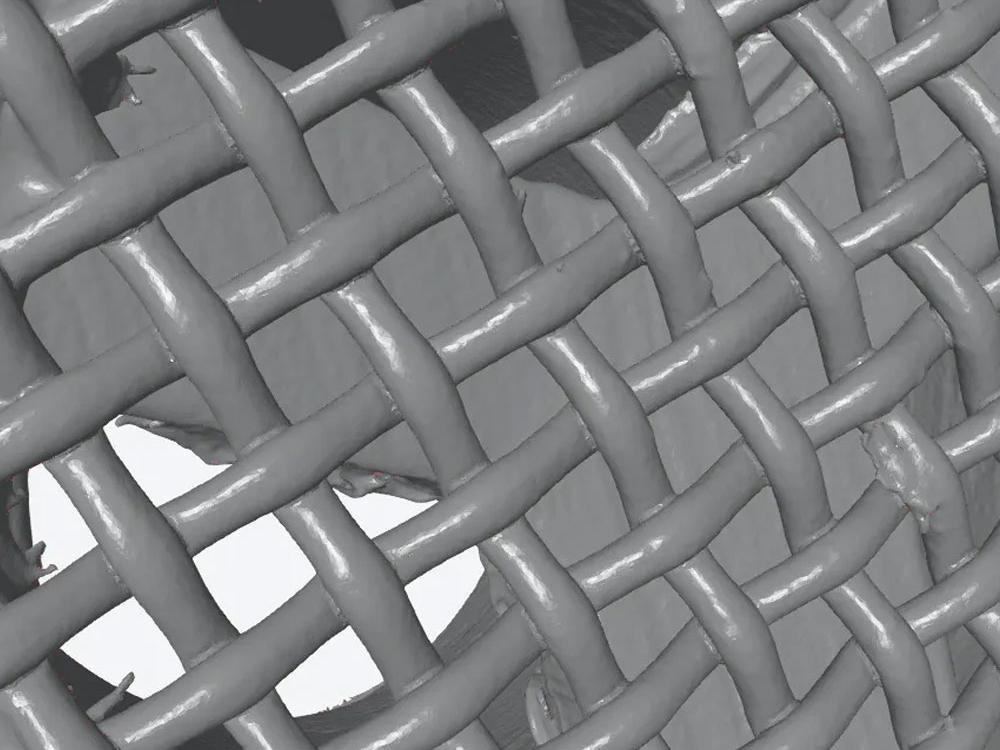

Diğer teknolojilerde gizli kalan kusurları açığa çıkarın
ÇözünürlükZEISS METROTOM 6 scout bir parçayı dijitalleştirirken olağanüstü ayrıntı keskinliği elde eder: Bu durum ilk olarak, ölçüm verilerini elde etmek için yüksek çözünürlüklü 3k X-ray dedektörü kullanmasından, ikinci olarak ise her bir parçanın mümkün olan en iyi ölçüm konumunda ve dolayısıyla her zaman mümkün olan en yüksek çözünürlükte ölçülmesinden kaynaklanmaktadır. Sonuç görselde görülebilir: Solda, ZEISS METROTOM 6 scout ile oluşturulan ölçüm verileri ve sağda, normal standart görülmektedir.
![Yüksek hassasiyeti garanti eder]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-tileteaser.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-tileteaser.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-tileteaser.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg"} "Yüksek hassasiyeti garanti eder")

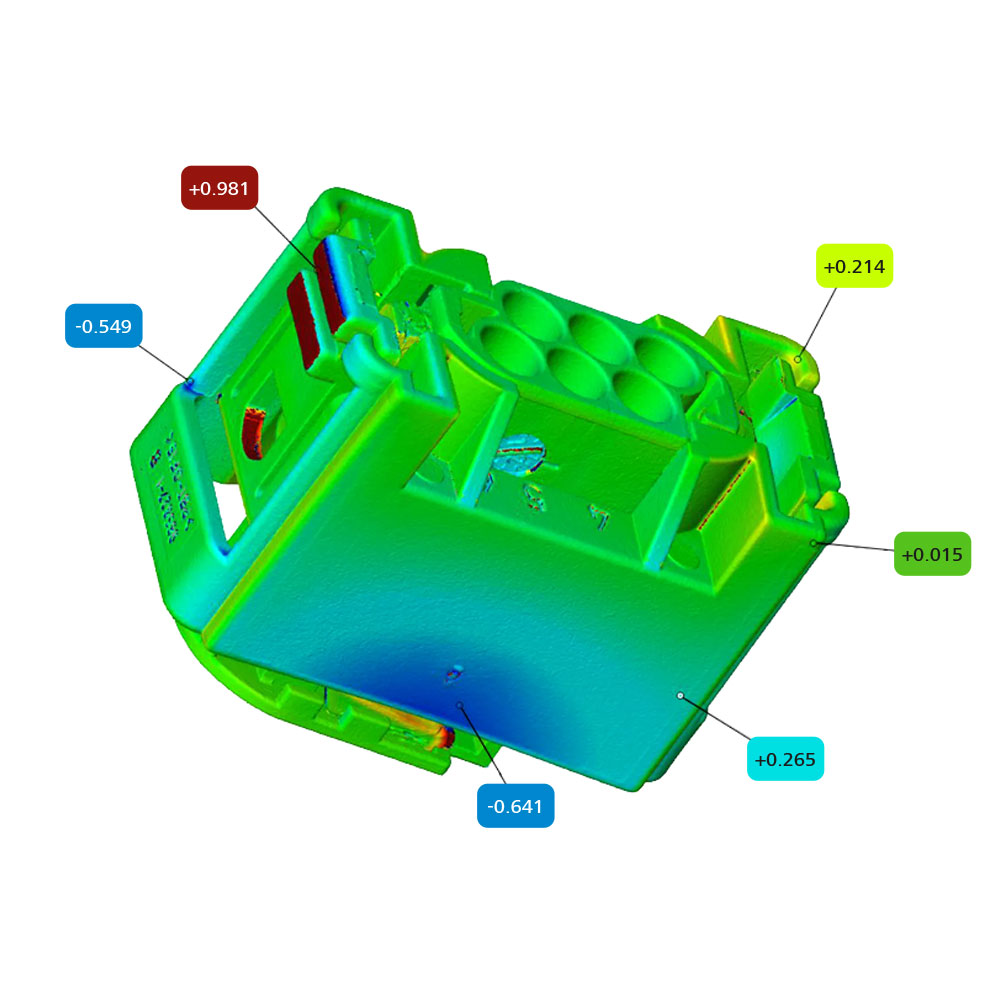

Yüksek hassasiyeti garanti eder
HassasiyetZEISS METROTOM 6 scout, hassas 3D ölçüm verilerini oluşturmak için matematiksel zekayı kullanır. Tüm ölçüm süreci boyunca, ölçüm odasının dijital modellemesi ile mükemmel bir şekilde birbirine bağlı algoritmaları bir araya getirir. Ayrıca ölçümle ilgili tüm bileşenler için optimize edilmiş mekanik stabilite sunar. Sonuç olarak: Ölçüm sonuçlarına bağlı olarak, bir parçanın kalitesini gerçekten güvenilir ve son derece doğru bir şekilde değerlendirebilir ve ek analizler yapabilirsiniz.
Parçaları otomatik olarak ortalar
Entegre merkezleme tablasına sahip 5 eksenli kinematik sistemi, parçayı ölçüm hacminde en iyi şekilde konumlandırır. Makinenin ölçüm odasına yerleştirmeniz yeterlidir, gerisi yazılım tarafından halledilir.
![Çok Malzemeli Artifact Reduction]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-ammar-1920-1080.jpg"} "Çok Malzemeli Artifact Reduction")
![Dikey Görüş Alanı Genişletme]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-vertical-field-of-view-extension-1920-1080.jpg"} "Dikey Görüş Alanı Genişletme")
![Yarım Daire Tarama]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.100.56.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.360.203.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.768.432.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-semi-circle-scan-1920-1080.png"} "Yarım Daire Tarama")
![Ayırma]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg/_jcr_content/renditions/original./zeiss-metrotom-6-slideshow-separation-1920-1080.jpeg"} "Ayırma")

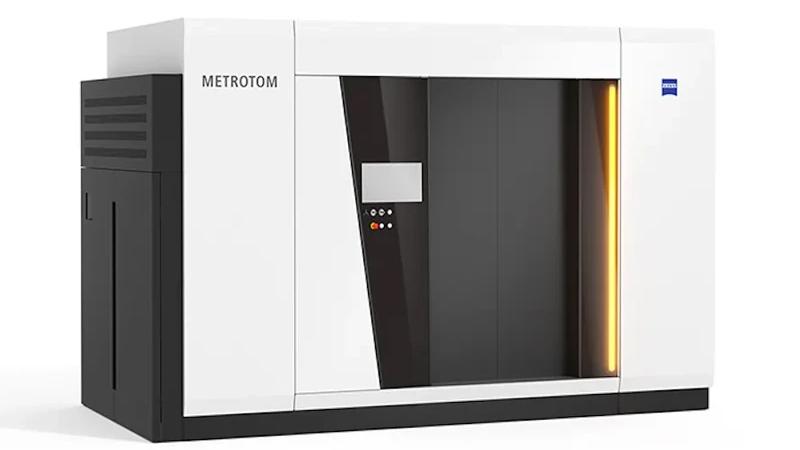

![ZEISS METROTOM 1500]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg"} "ZEISS METROTOM 1500")

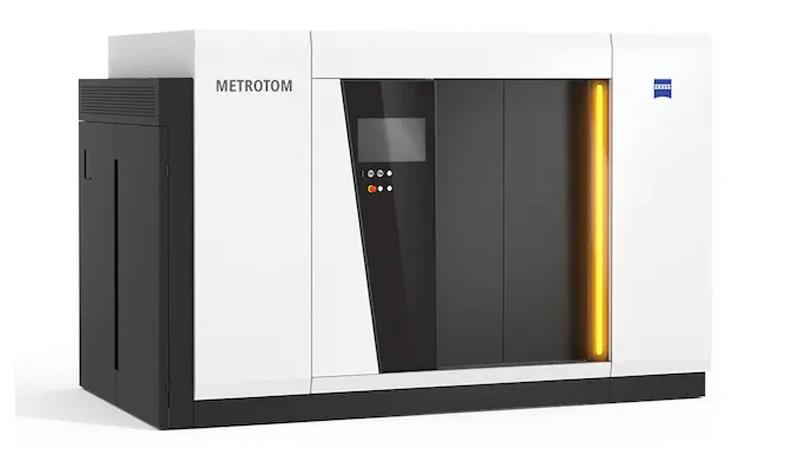

![ZEISS METROTOM 800 225 kV HR]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg"} "ZEISS METROTOM 800 225 kV HR")
![ZEISS METROTOM 6 scout]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg"} "ZEISS METROTOM 6 scout")

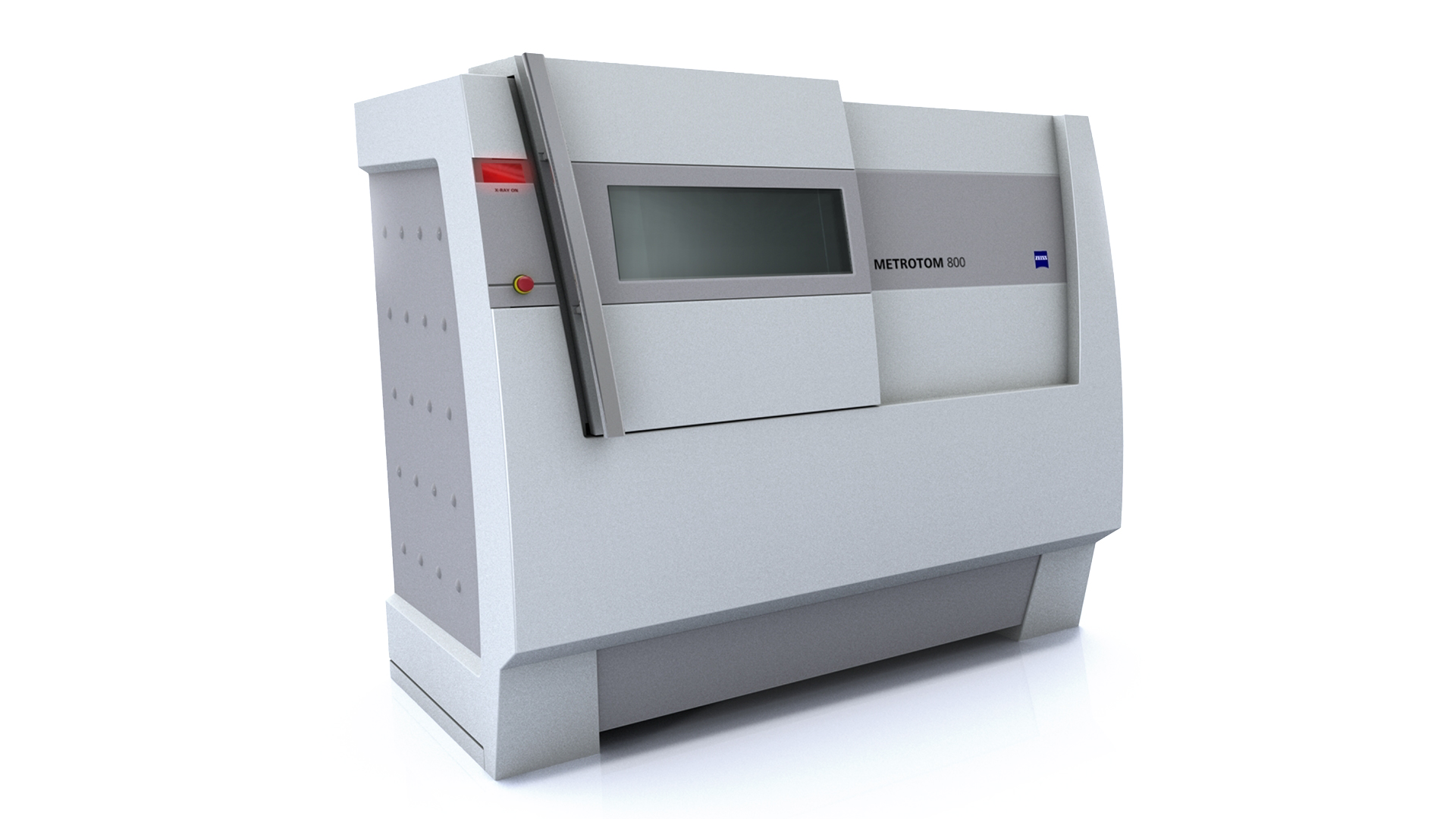

![ZEISS METROTOM 800 130 kV]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original./zeiss-3d-x-ray-metrotom-800-130-800-600.jpg"} "ZEISS METROTOM 800 130 kV")
Teknik veriler
Özellik|
X-ray kaynağı |
225 kV |
|---|---|
|
X-ray dedektörü |
Çözünürlük: 3008 x 2512 piksel |
|
Ölçüm alanı |
derinlik: 240 mm |
|
Voksel boyutu |
2 µm - 80 µm |
|
Boyut |
Y. 2210 mm |
|
Ağırlık |
4800 kg |
|
Uygulama alanı |
İlk mamul muayenesi, takım düzeltme, devam eden üretim sırasında muayene |
|
Muayene özellikleri |
İç yapılar, duvar kalınlığı, malzeme kusurları, gözenekler ve çekme boşlukları |
|
Ölçüm görevleri |
GD&T analizi, nominal-gerçek karşılaştırması, montaj analizi |
