Konumlandırma, kusur tespiti ve dijitalleştirme
En son nesil elektrik motorlarındaki tüm bileşenler arasında stator, e-motor performansını, gücünü ve verimliliğini artırma konusunda en büyük potansiyeli sunan bileşendir. Yeni hammaddelerin ve yenilikçi üretim teknolojilerinin kullanımı göz önüne alındığında, e-motorların güvenliğini, güvenilirliğini ve performansını güvence altına almak için tüm stator üretim adımlarında kalite güvencesinin uygulanmasını büyük önem taşımaktadır.
![Yalıtım Kağıdı ve Hairpin Konumu]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.100.75.0,75,600,525.file/03-e-motor-application-line-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.360.270.0,75,600,525.file/03-e-motor-application-line-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/03-e-motor-application-line-600px.jpg/_jcr_content/renditions/original.image_file.600.450.0,75,600,525.file/03-e-motor-application-line-600px.jpg"} "Yalıtım Kağıdı ve Hairpin Konumu")

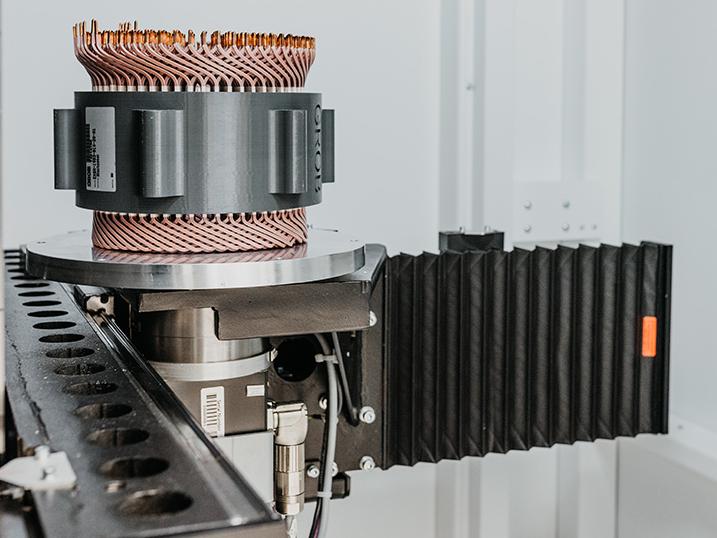

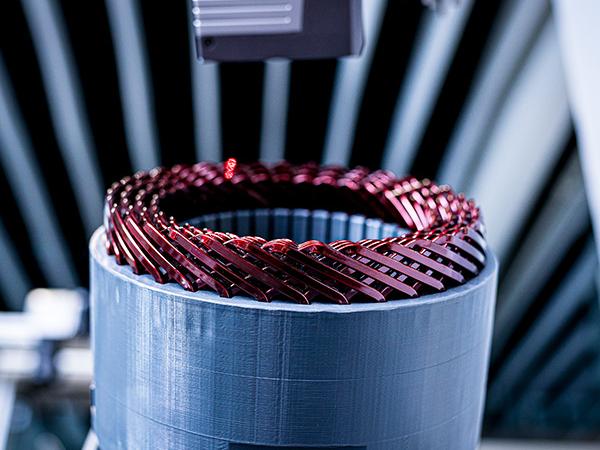

Stator montajı sırasında, yalıtım kağıdı ve hairpin'ler sac yığını yuvalarına yerleştirilir ve birbirine kaynaklanır. Güç kaynağı bağlantı noktaları da kaynakla birleştirilir. Stator kısa devrelerini önlemek için birden fazla özelliğin kontrol edilmesi gerekir. Bakır hairpin'lerin son derece esnek bir yapıya sahip olması nedeniyle konumların ve boyutların doğru bir şekilde kontrol edilebilmesi için esnek temaslı ve optik ölçüm teknolojilerine ihtiyaç duyulmaktadır; bu noktada ZEISS çok sensörlü koordinat ölçüm makinesi (CMM) ideal çözümdür.
![Tertibat Hacmi Kontrolü]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.100.56.0,131,600,469.file/05-assembly-inspection-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.360.203.0,131,600,469.file/05-assembly-inspection-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/05-assembly-inspection-600px.jpg/_jcr_content/renditions/original.image_file.600.338.0,131,600,469.file/05-assembly-inspection-600px.jpg"} "Tertibat Hacmi Kontrolü")

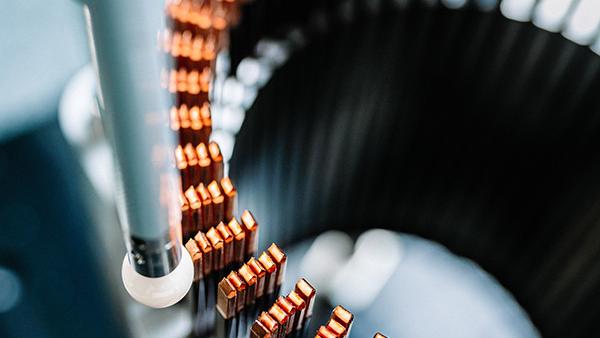

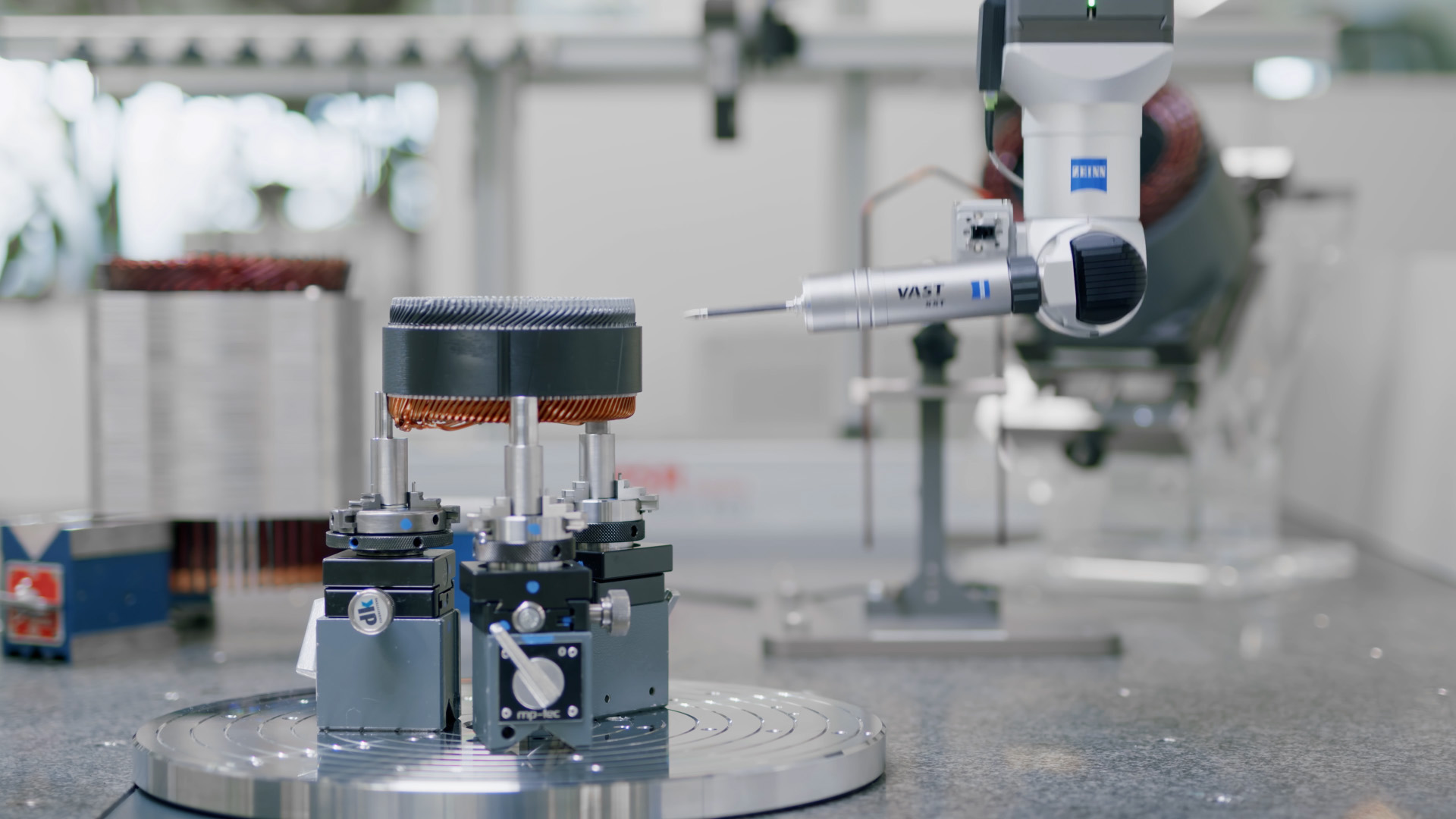

Statorun dış boyutları elektrik motoru gövdesindeki mevcut montaj alanını sığmazsa e-motor montajı mümkün olmaz. Kütle teknolojisi ile donatılmış ZEISS koordinat ölçüm makineleri (CMM'ler), farklı sensör teknolojileri arasında otomatik geçiş sağlar. Lazer triangülasyon probları ve temaslı ölçüm sistemleri kombinasyonu, önceden monte edilmiş stator için tam kalite güvencesi sağlar.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/10-emot-sw-mesh-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/10-emot-sw-mesh-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/10-emot-sw-mesh-600px.jpg/_jcr_content/renditions/original./10-emot-sw-mesh-600px.jpg"})

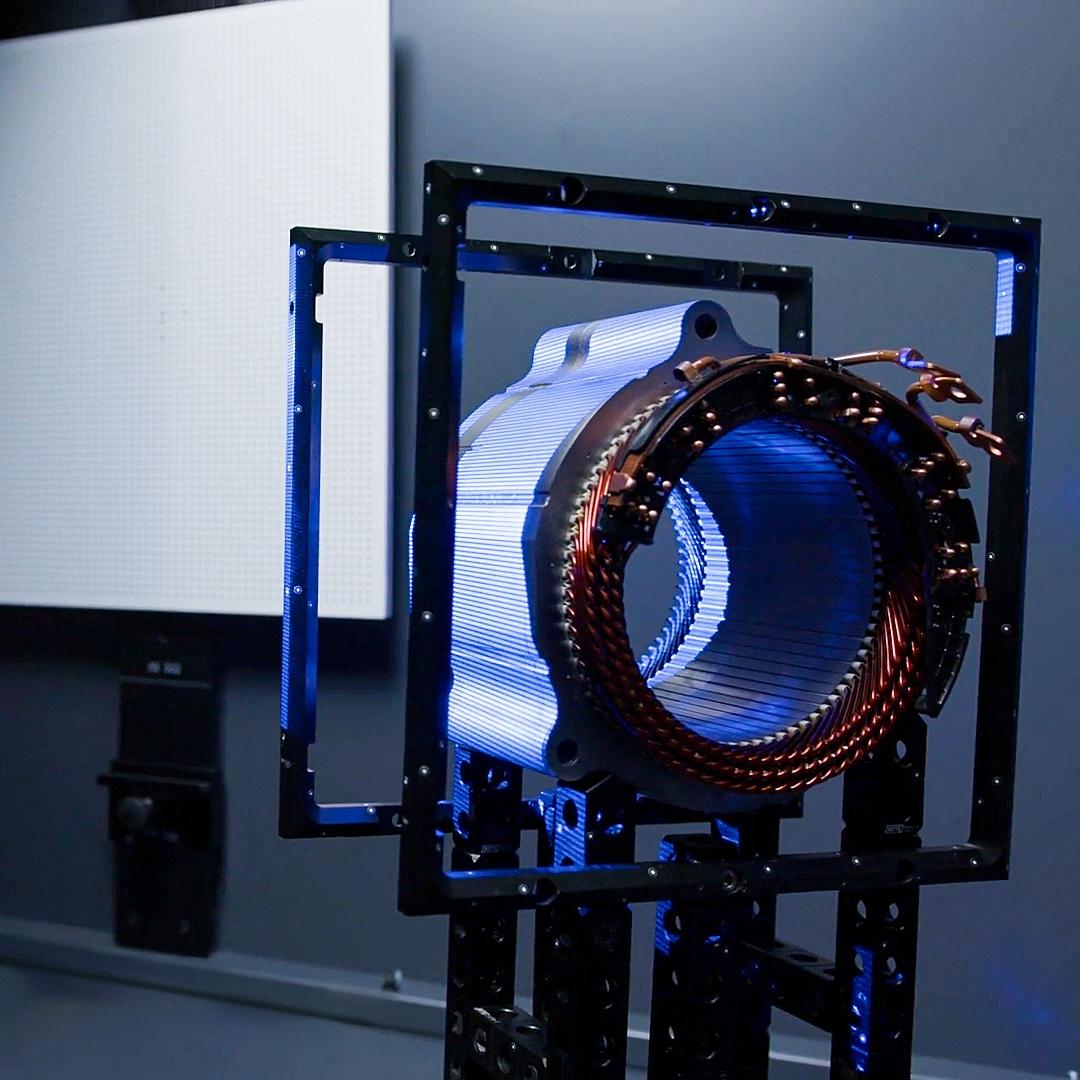

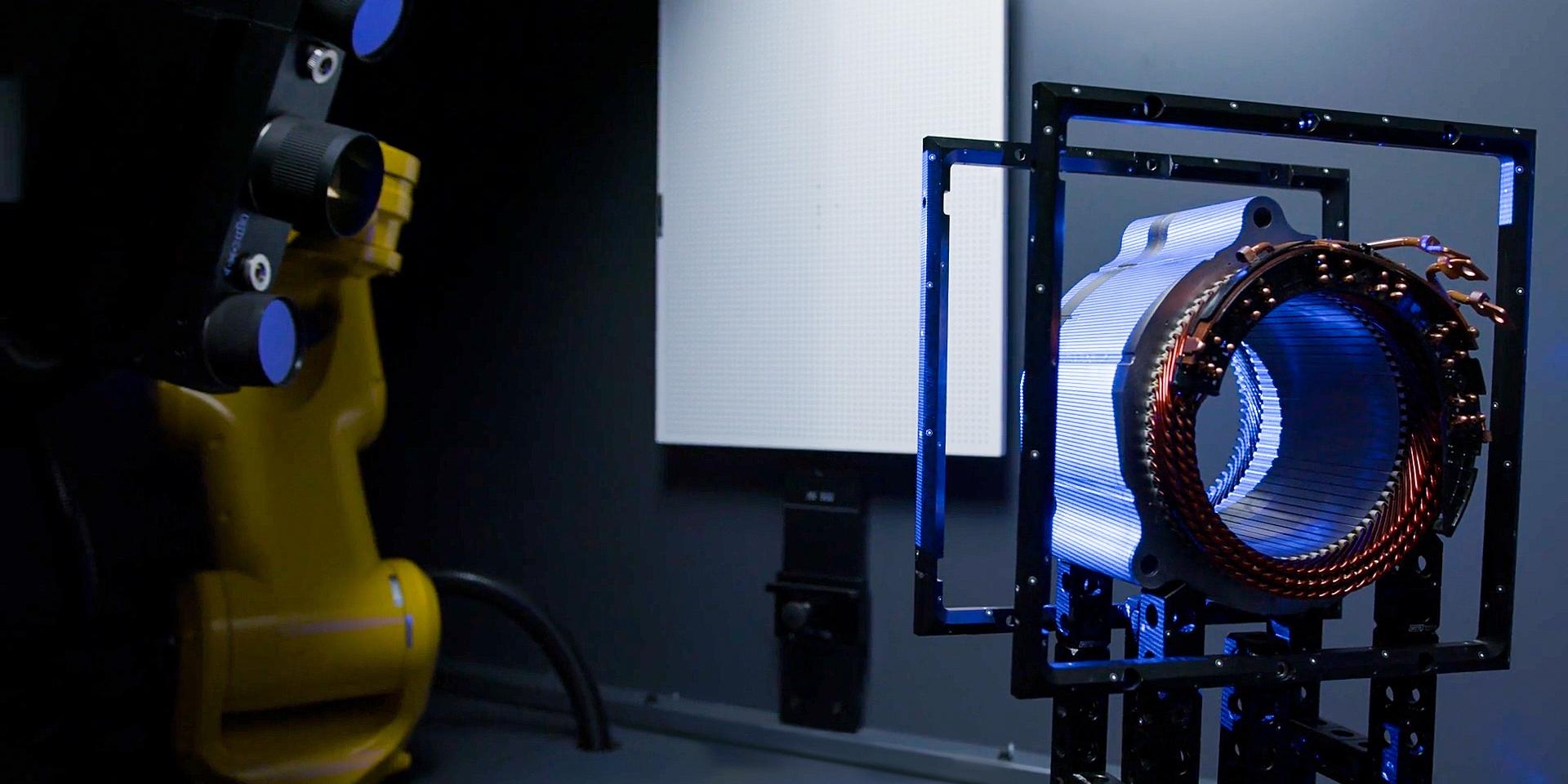

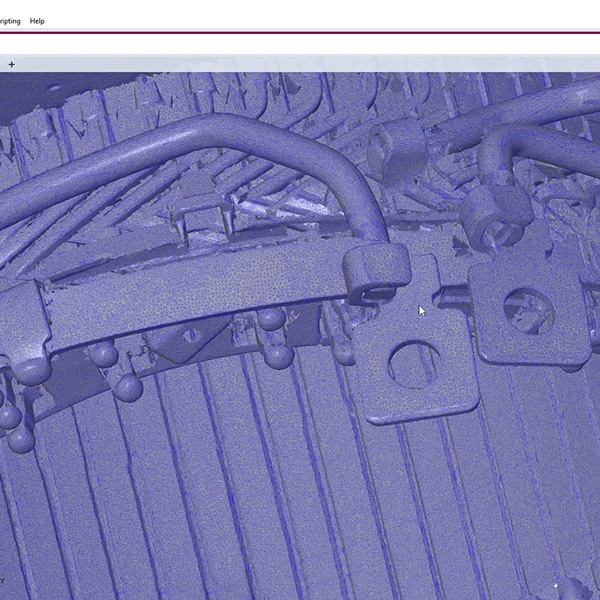

ZEISS ScanBox for eMotors, tekli hairpin'lerin, çoklu hairpin'lerin ve hatta komple statorların otomatik tam yüzey taramasını ve dijitalleştirmesini gerçekleştirmek için özel olarak geliştirilmiştir.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/12-zeiss-emotor-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/12-zeiss-emotor-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/12-zeiss-emotor-600px.jpg/_jcr_content/renditions/original./12-zeiss-emotor-600px.jpg"})

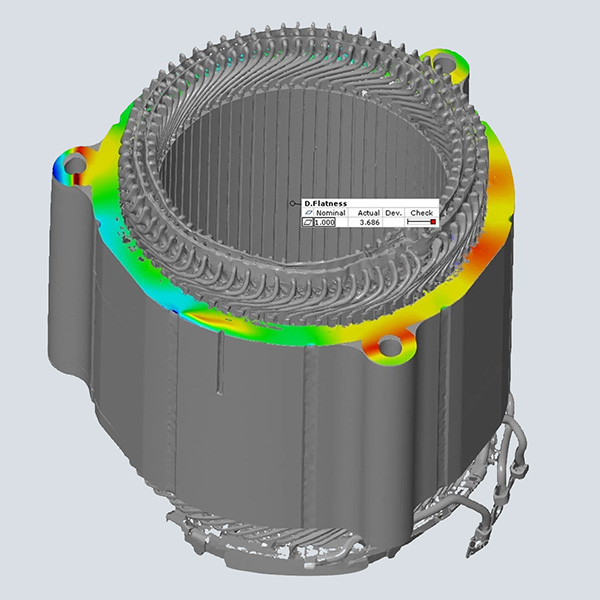

Yazılım, geniş bir alana dağılmış 3D koordinatları kullanarak tam bir geometrik dijital ikiz oluşturur. Bu, CAD modeli ile karşılaştırma yoluyla bileşen geometrisindeki sapmaların ve kusurların hızlı ve tekrarlanabilir bir şekilde tespit edilmesine olanak sağlar.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/13-emotor-software-teaser-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/13-emotor-software-teaser-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/13-emotor-software-teaser-600px.jpg/_jcr_content/renditions/original./13-emotor-software-teaser-600px.jpg"})

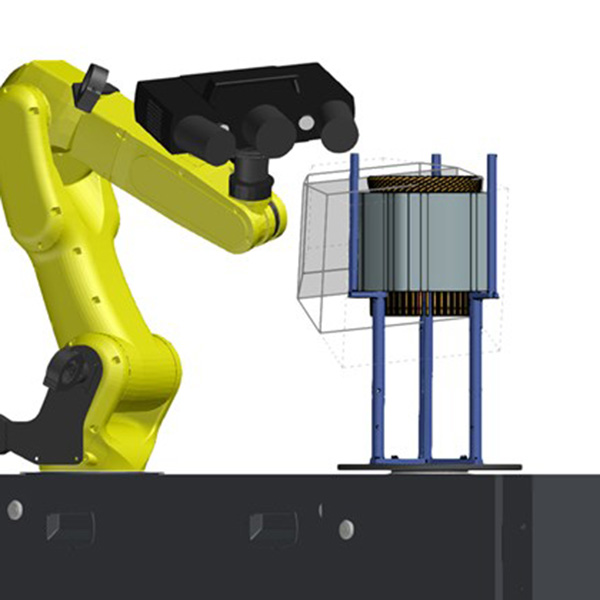

Sanal ölçüm odası (VMR) ZEISS Quality Suite'te açılır. Bu, gerçek ZEISS ScanBox for eMotors'un fonksiyonel görüntüsüne ek olarak, robot yollarının kinematiği de dahil olmak üzere robot programlamasını da içerir.
![]({"xsmall":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original.image_file.100.100.file/15-e-motors-software-600px.jpg","small":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original.image_file.360.360.file/15-e-motors-software-600px.jpg","medium":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","large":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","xlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","xxlarge":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg","max":"https://www.zeiss.com.tr/content/dam/iqs/r/industries/automotive/nev/e-motor/stators/15-e-motors-software-600px.jpg/_jcr_content/renditions/original./15-e-motors-software-600px.jpg"})

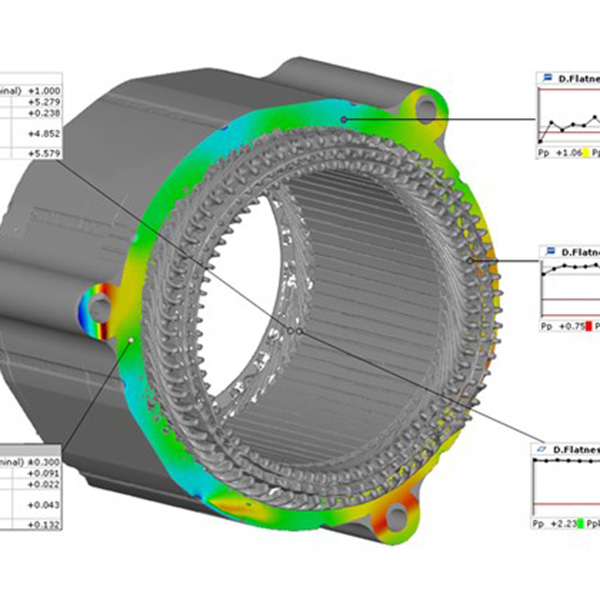

Otomatik trend analizi, ideal modelden sapmaların erkenden tespit edilmesini sağlar. Sürekli ölçüm, önceki üretim adımlarından kaynaklanan değişikliklerin hızlı bir şekilde tespit edilmesini sağlar: Daha sonra gerekli ayarlamalar bu bilgilerden türetilebilir ve böylece erken safhada uygulanabilir.
